HARVESTER

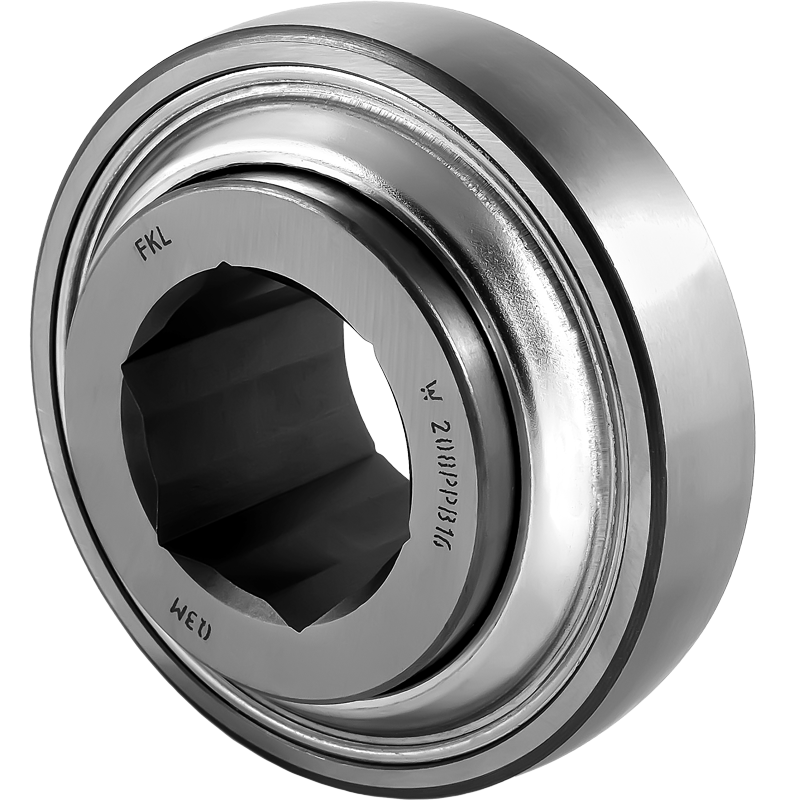

W 208PPB16

Hexagonal Bore Series With Spherical Outer Ring

Application: Harvester

3D view

Technical Specification
CdynDynamic load rating30,7kN
CoStatic load rating19kN
DOutside diameter 80mm
dBore diameter32,5mm
CD-shape hole cut out dimension18mm
kgMass0,67lbs
BWidth inner ring 36,5mm
aSize of the hexagon31,78

Sealing Type

×
×
