3209 NPPB.AH02

Double Row Angular Contact Ball Bearing

Application: Disc Harrow

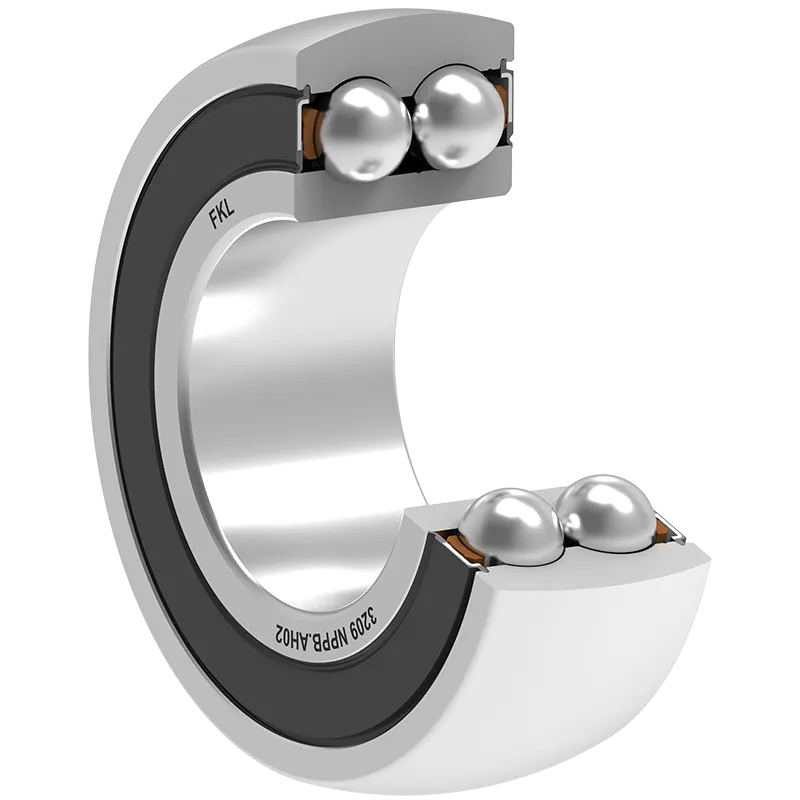

3D view

Technical Specification
dBore diameter45mm
DOutside diameter 90mm
BWidth inner ring 30.2mm
αContact angle30°
kgMass0.63kg
CdynDynamic load rating51kN
CoStatic load rating39kN
PuFatigue load limit1.638kN

Tehnical Drawing

Sealing

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.

Sealing Drawing

3209 NPPB.AH02

×

3209 NPPB.AH02

×

Sealing Type:

Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals.
