AGRO POINT HUBS

IL60-114.5/5T-M30

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc Harrow

3D view

Technical Specification
J	Pitch circle diameter	114.5	mm
D	Outside diameter	140	mm
D1	Centar bore on the disc	61	mm
H/T	Hole/Thread	5xM12	mm
d	Bore diameter	39.8	mm
C	D-shape hole cut out dimension	34.5	mm
M	Outher Thread	M30	mm
L	Total length	127	mm
L1	Total flange length	67	mm
E	Length of D shape	28	mm
F	Length of threaded part	32	mm
kg	Mass	3.911	kg
Cdyn	Dynamic load rating	75.86	kN
Co	Static load rating	66.2	kN
Pu	Fatigue load limit	2.78	kN

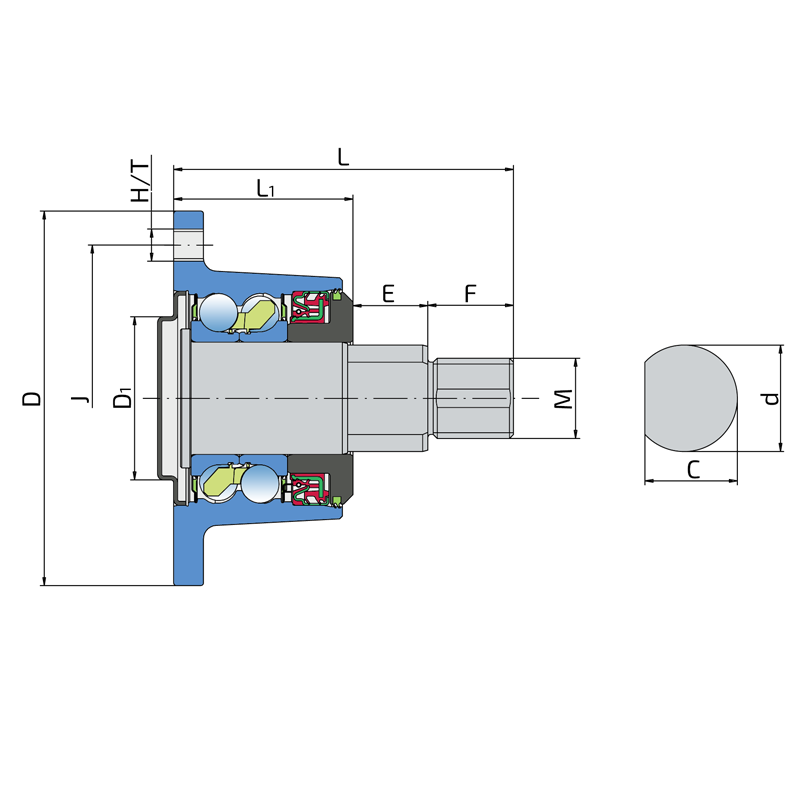

Tehnical Drawing

Sealing

SHEET METAL SHIELD + S SEAL / S SEAL + DIRTBLOCK SEAL + DOUBLE SEAL + FORGED COVER PLATE

Sheet metal shield and S seal on the base side and S seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.

Sheet metal shield and S seal together with attached special disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

Additional double seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.

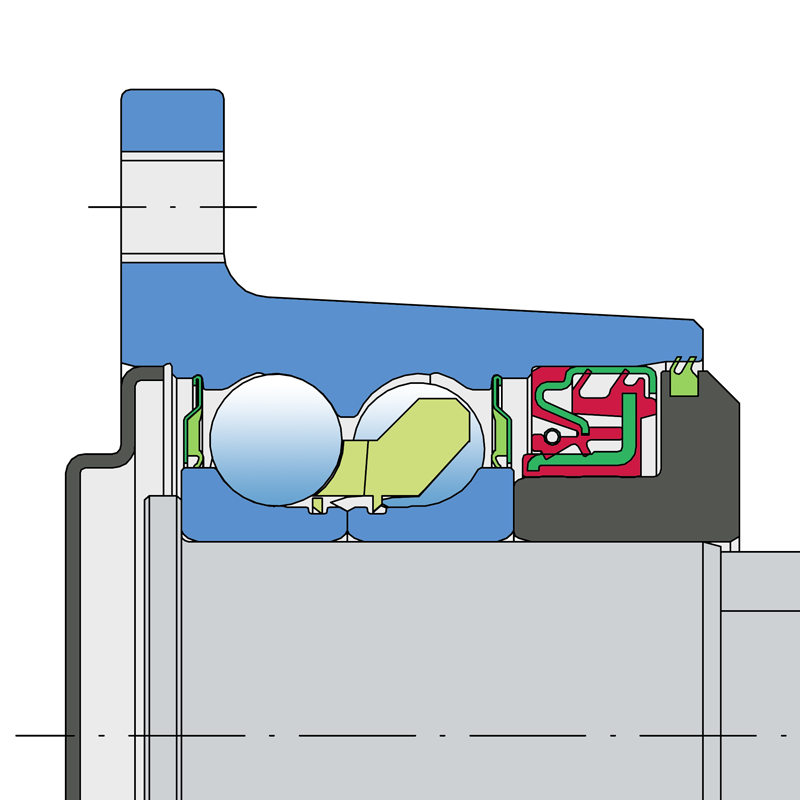

Sealing Drawing
