LS 208 TDT.H.T*K
Ball bearing
Application: Cultivator, disc seeders and tine seeders
3D view
| d | Bore diameter | 40 | mm |
| D | Outside diameter | 80 | mm |
| B | Width inner ring | 43.2 | mm |
| C | Width outer ring | 21 | mm |
| E | Distance from raceway centre to the hole for lubrication | 6.15 | mm |
| s | Distance from inner ring side face to raceway centre | 27.2 | mm |
| kg | Mass | 0.57 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.798 | kN |

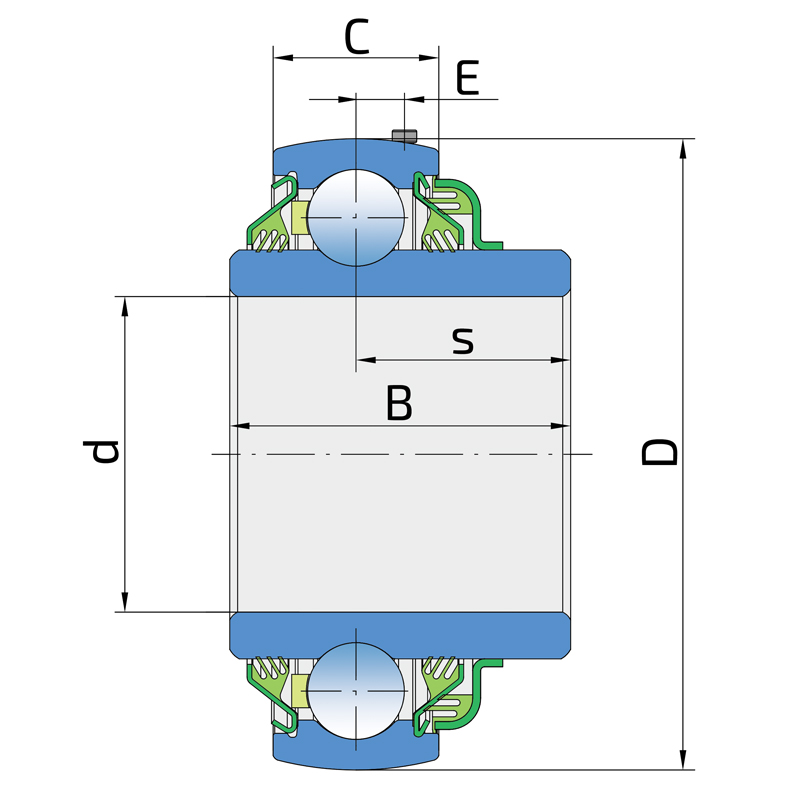

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
