LSQ 308 2TD.H.T
Ball bearing
Application: Packer Roller
3D view
| d | Bore diameter | 40 | mm |
| D | Outside diameter | 90 | mm |
| B | Width inner ring | 45.8 | mm |
| C | Width outer ring | 26 | mm |
| d1 | Outer diameter inner ring | 56.11 | mm |
| E | Distance from raceway centre to the hole for lubrication | 7 | mm |
| kg | Mass | 0.967 | kg |
| Cdyn | Dynamic load rating | 62.3 | kN |
| Co | Static load rating | 45.2 | kN |
| Pu | Fatigue load limit | 1.898 | kN |

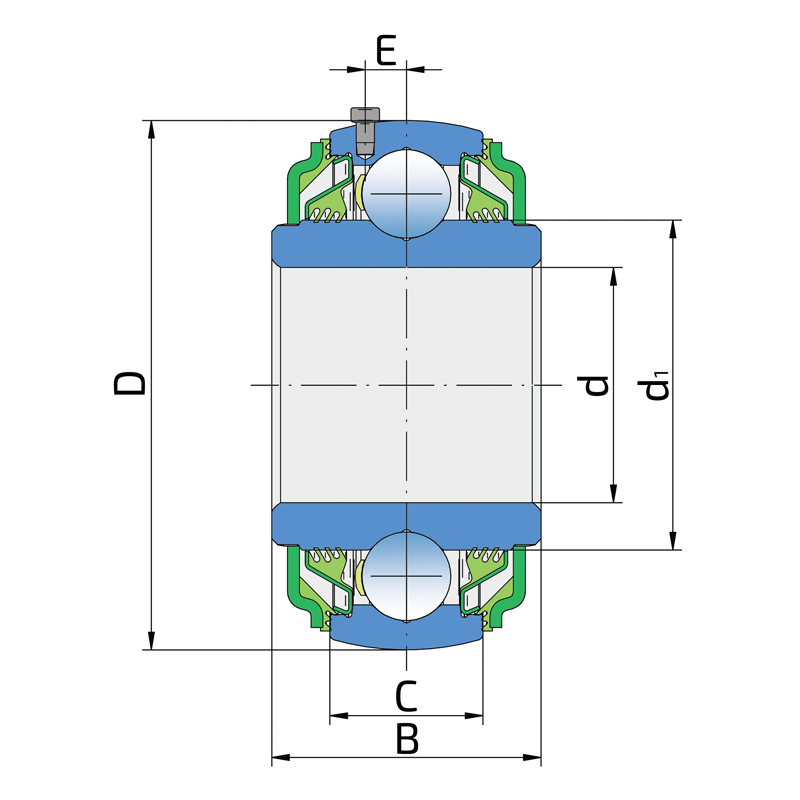

Tehnical Drawing
Sealing
RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER
Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.
The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.

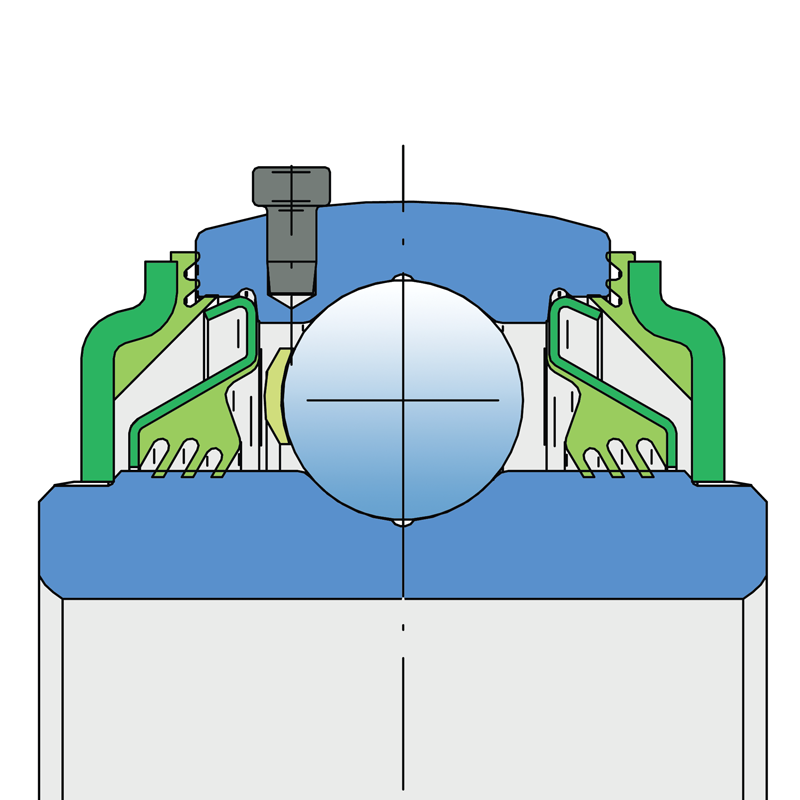

Sealing Drawing
