LSQFR 308 2TD.H.T
Bearing Unit
Application: Packer Roller
3D view
| d | Bore diameter | 40 | mm |
| L | Total length | 130 | mm |
| J | Distance between the holes | 101.5 | mm |
| H/T | Hole/Thread | 4x13 | mm |
| A | Overall width | 48.4 | mm |
| A1 | Total housing width | 40.6 | mm |
| A2 | Housing flange thickness | 19 | mm |
| B | Width inner ring | 45.8 | mm |
| kg | Mass | 2.51 | kg |
| Cdyn | Dynamic load rating | 41 | kN |
| Co | Static load rating | 24 | kN |
| Pu | Fatigue load limit | 1.01 | kN |

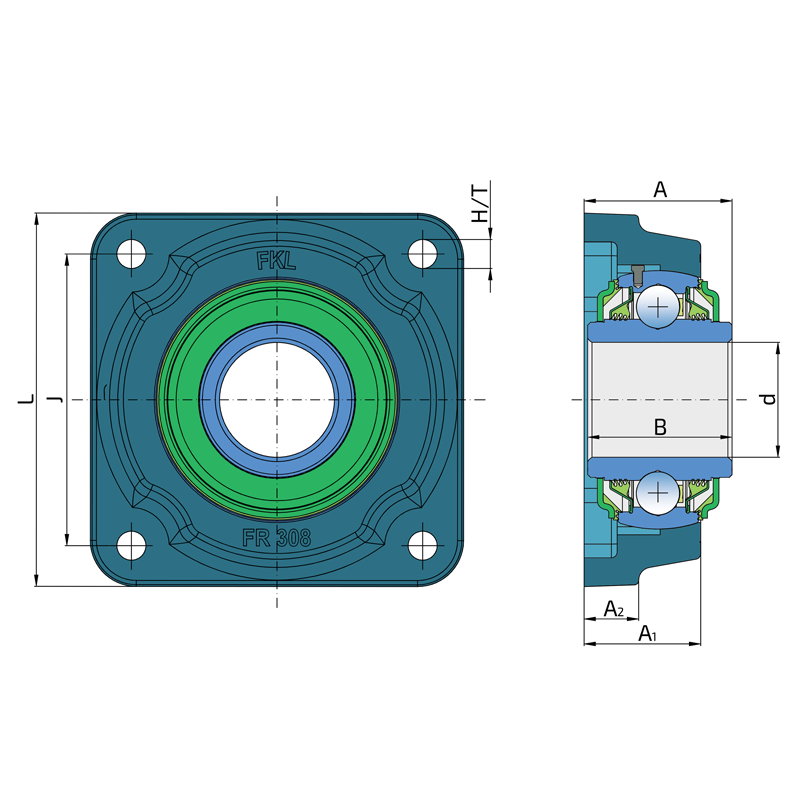

Tehnical Drawing
Sealing
RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER
Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.
The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.

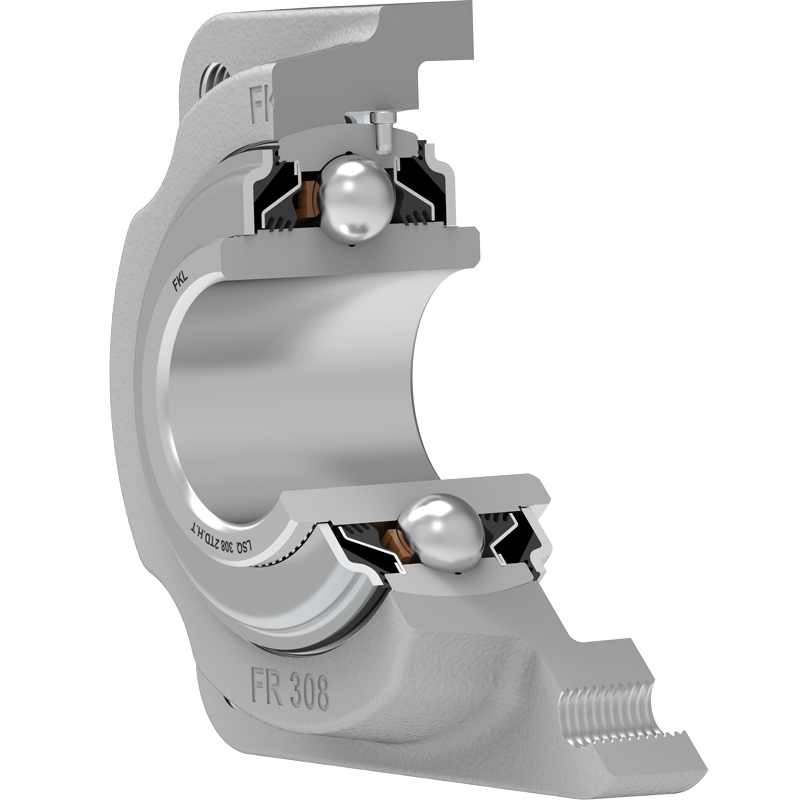

Sealing Drawing
