IL25-85/4T-M16-T

The Bearing Solution For Seeding Machines, Integrated Flange

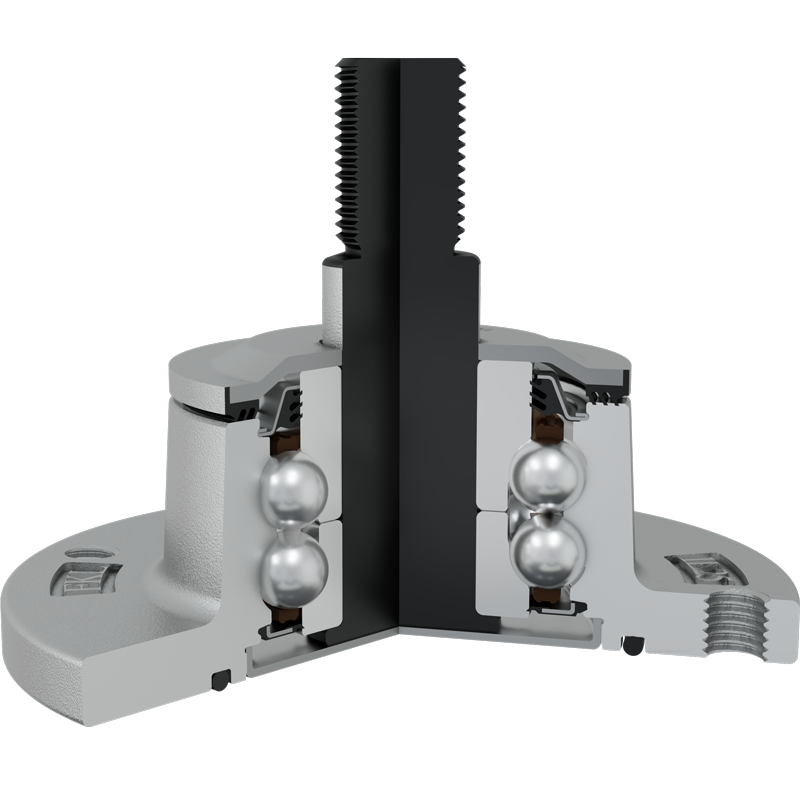

3D view

Technical Specification
J	Pitch circle diameter	85	mm
D	Outside diameter	100	mm
H/T	Hole/Thread	4xM8	mm
d	Shaft diameter	20	mm
C	D-shape hole cut out dimension	18.5	mm
M	Outher Thread	M16	mm
L	Total length	73	mm
L1	Total flange length	38	mm
E	Length of D shape	11	mm
F	Length of threaded part	24	mm
kg	Mass	0.944	kg
Cdyn	Dynamic load rating	32	kN
Co	Static load rating	22	kN
Pu	Fatigue load limit	0.92	kN

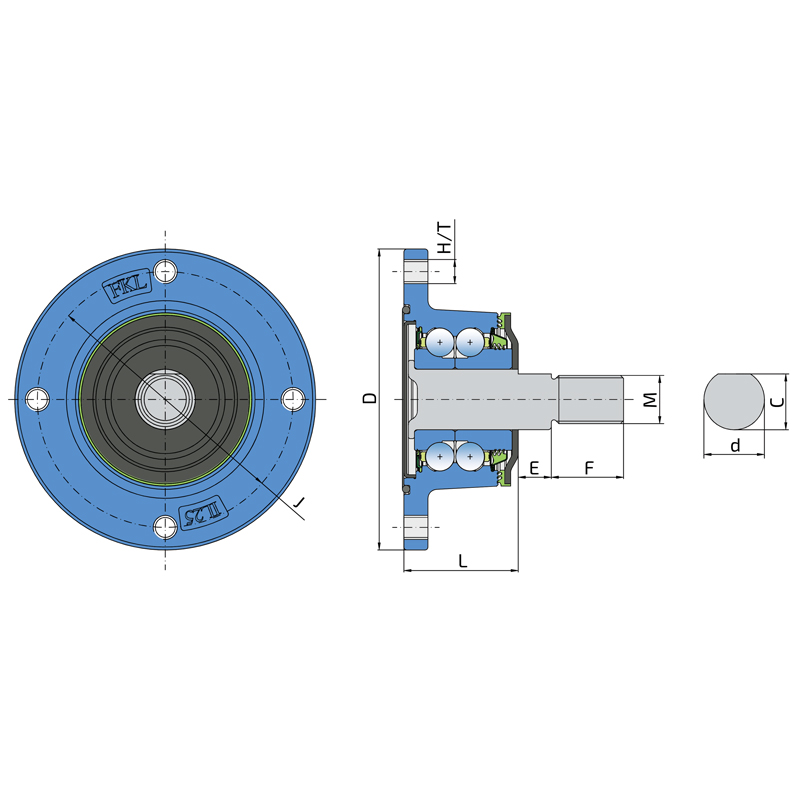

Tehnical Drawing

Sealing

O-RING+ SHEET METAL SHIELD+RS SEAL / DOUBLE T SEAL+METAL PROTECTIVE COVER

O-ring, Sheet metal shield and RS seal on the base side and the 3-lip seal, reinforced with frontal 3-lip seal and Metal protective cover on the front side, which is exposed to the contaminants.

O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.

The 3-lip seal in combination with the frontal 3-lip seal provides better protection of contamination and extend the bearing life. The Metal protective cover of the frontal 3-lip seal also protect the inner 3-lip seal from mechanical damages.

Sealing Drawing
