AGRO POINT HUBS
IL20-70/6H-74/2T-B16
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine
3D view
| J | Pitch circle diameter | 70 | mm |
| J1 | Pitch circle diameter | 74 | mm |
| D | Outside diameter | 89 | mm |
| H/T | Hole/Thread | 6x5.4 | mm |
| d1 | Bore diameter | 16.053 | mm |
| L1 | Total flange length | 18 | mm |
| L2 | Bearing width | 18.669 | mm |
| α | Contact angle | 25 | ° |
| kg | Mass | 0.429 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.638 | kN |

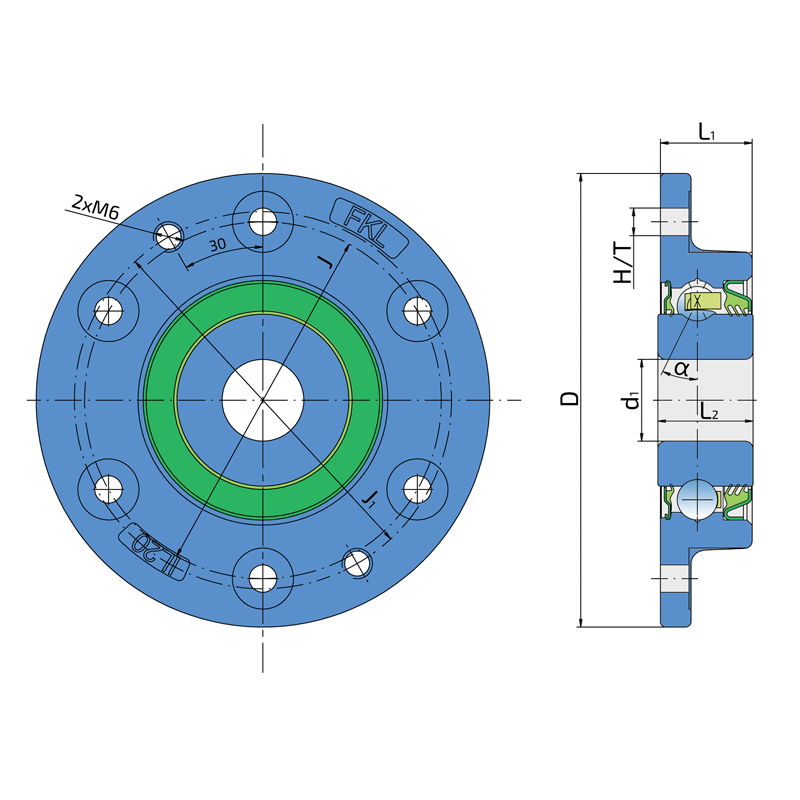

Tehnical Drawing
Sealing
S SEAL / T SEAL
S seal on the base side and the 3-lip seal on the front side.
S seal on the base side also protected with attached disc, protecting the bearing from contamination.
3-lip seal on the front side eliminates bearing contaminants.

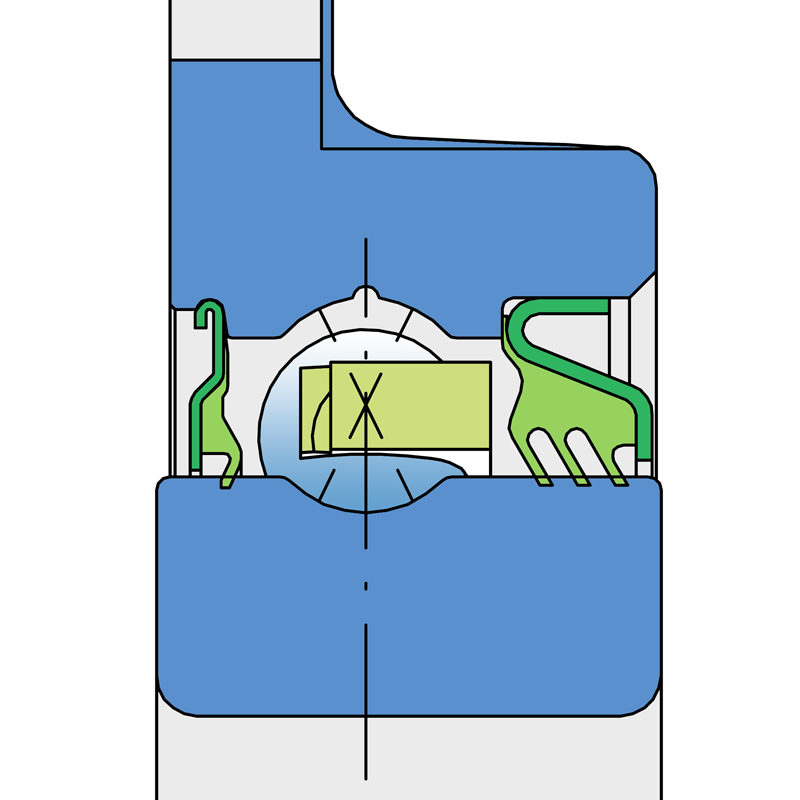

Sealing Drawing
