IL20-76.2/6H-B16-24.608
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

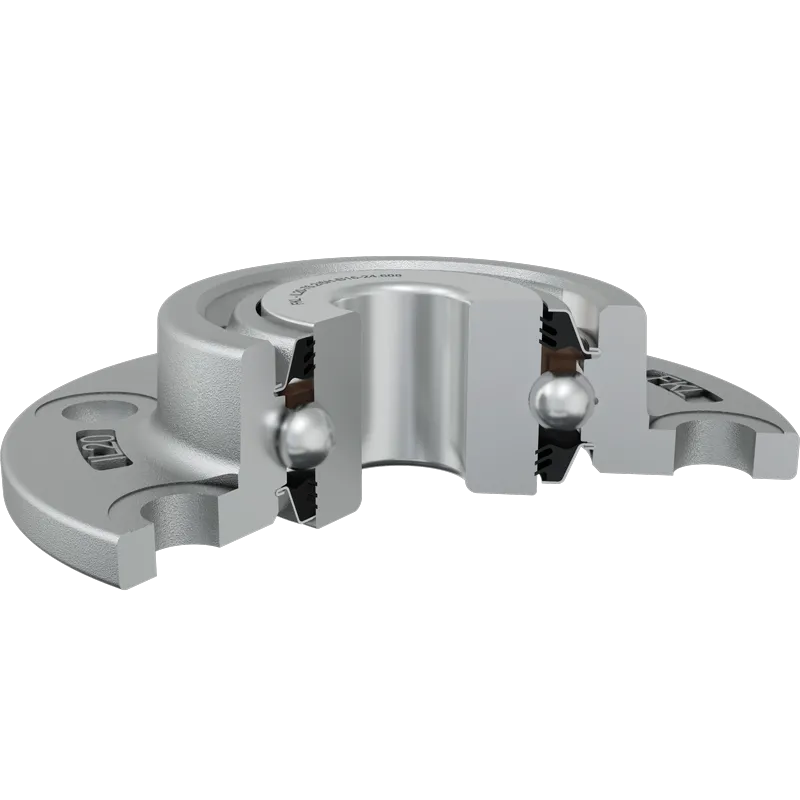

3D view
| J | Pitch circle diameter | 76.2 | mm |
| D | Outside diameter | 96 | mm |
| H/T | Hole/Thread | 6x9.52 | mm |
| L1 | Total flange length | 21 | mm |
| L2 | Bearing width | 24.608 | mm |
| d1 | Bore diameter | 16.129 | mm |
| α | Contact angle | 25 | ° |
| kg | Mass | 0.501 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.638 | kN |

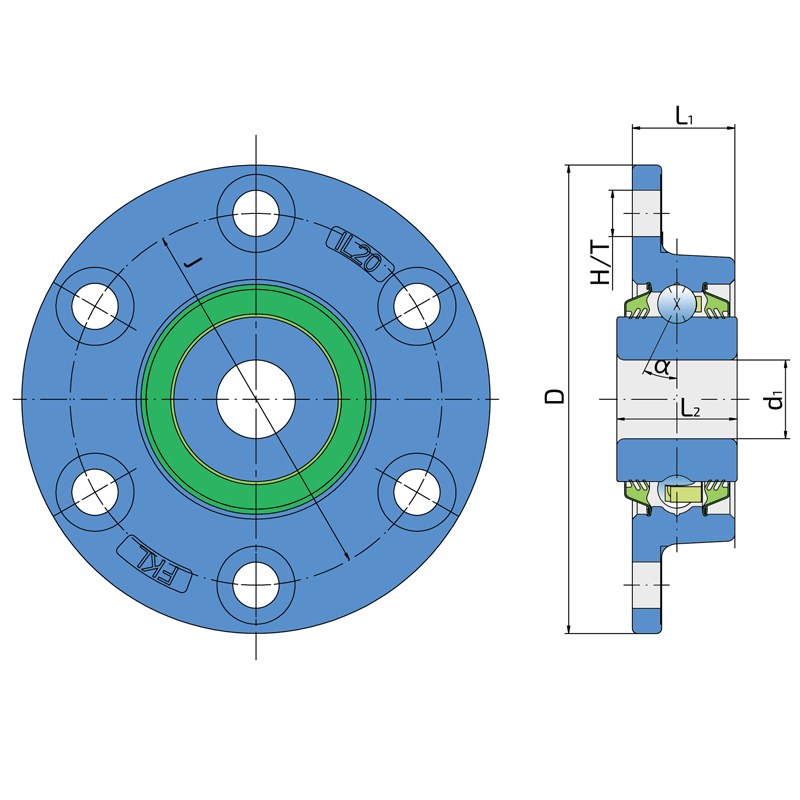

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
