HARVESTER
W 208PPB16
Hexagonal Bore Series With Spherical Outer Ring
Application: Harvester

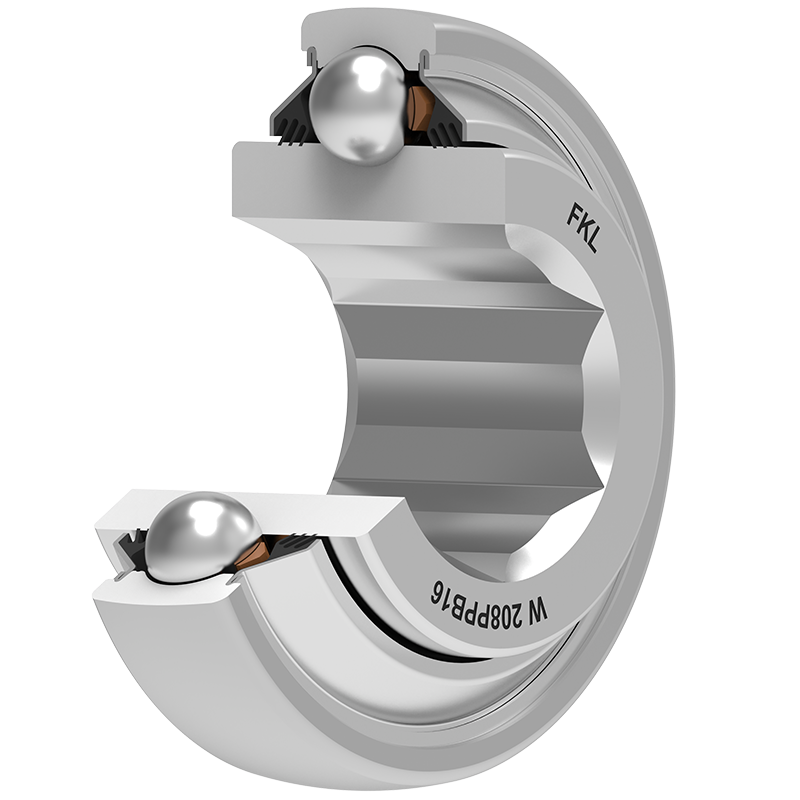

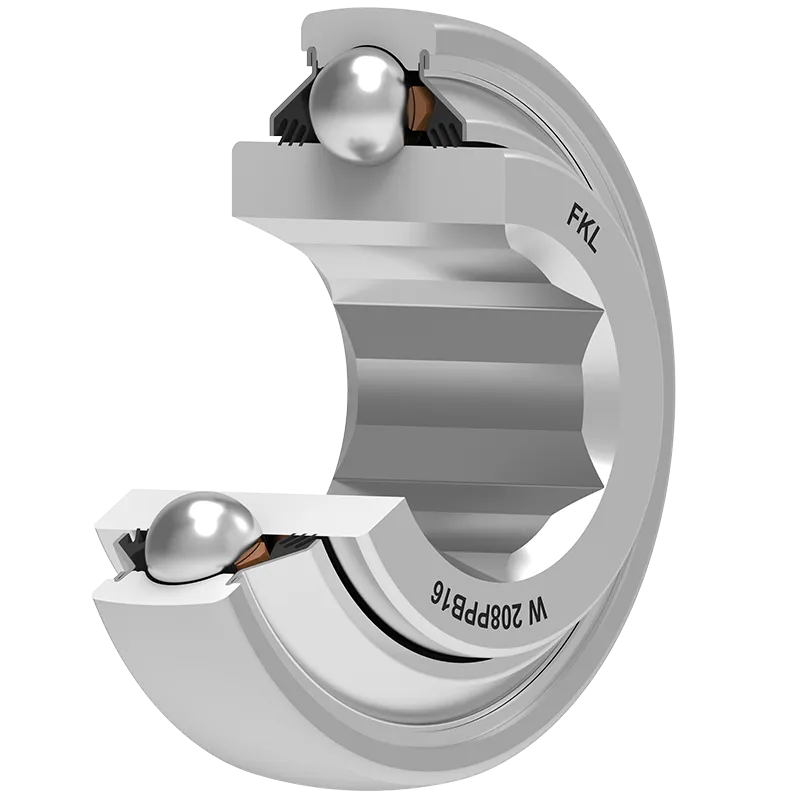

3D view
| D | Outside diameter | 3.1496 | inch |
| D | Outside diameter | 80 | mm |
| C | Width outer ring | 0.709 | inch |
| C | Width outer ring | 18 | mm |
| d | Bore diameter | 1.28 | inch |
| d | Bore diameter | 32.5 | mm |
| d1 | Outer diameter inner ring | 2.047 | inch |
| d1 | Outer diameter inner ring | 52 | mm |
| B | Width inner ring | 1.437 | inch |
| B | Width inner ring | 36.5 | mm |
| a | Hexagonal bore | 1.251 | inch |
| a | Hexagonal bore | 31.78 | mm |
| a | Shaft size | 1 1/4 | inch |
| a1 | Diagonal of the hexagon | 1.44 | inch |
| a1 | Diagonal of the hexagon | 36.6 | mm |
| kg | Mass | 0.67 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.8 | kN |

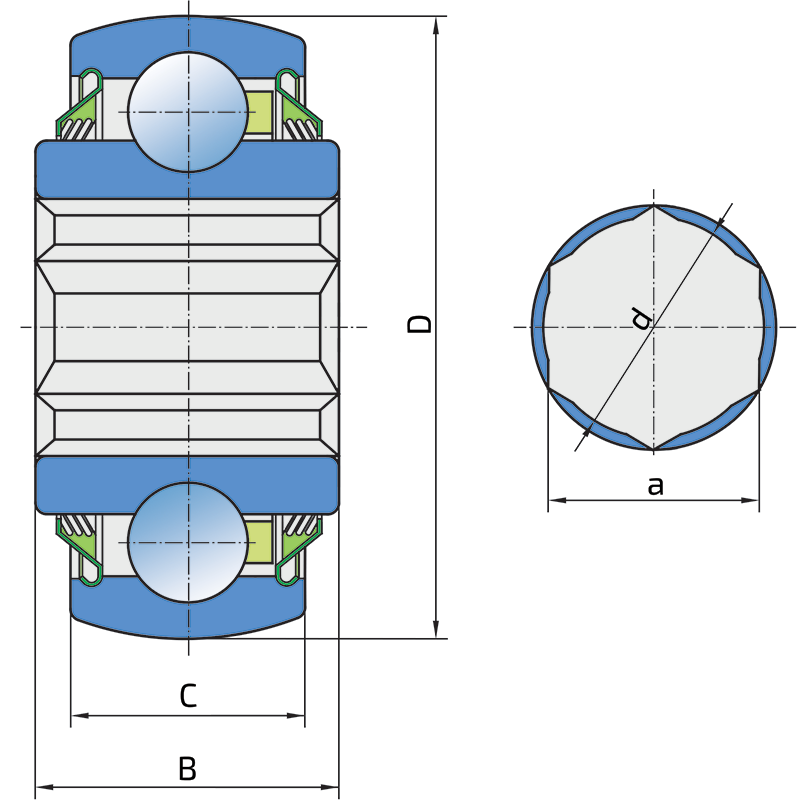

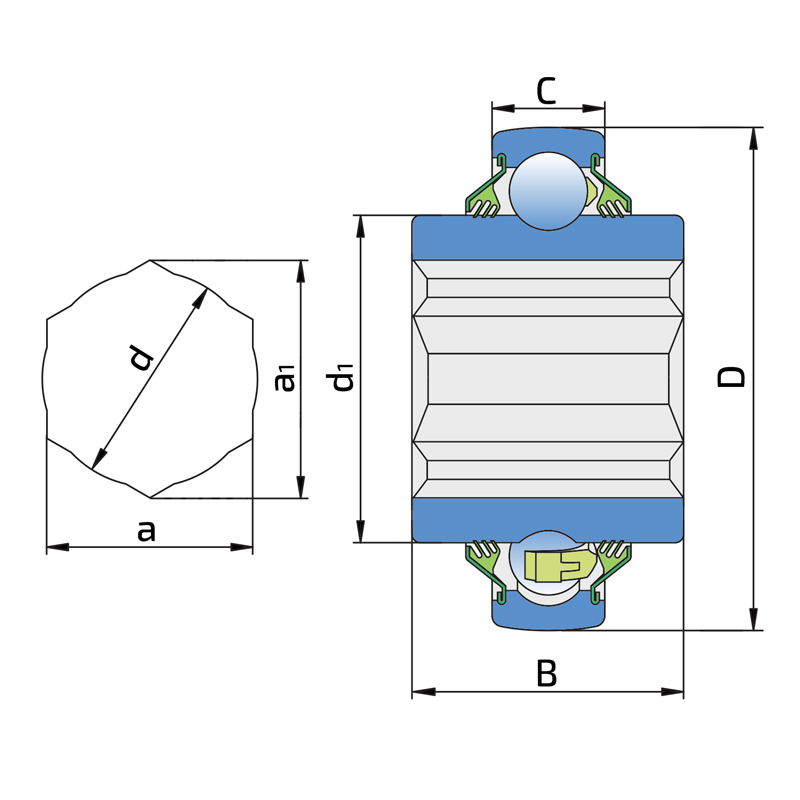

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
