PACKER BALER
W208KPP53
Ball Bearing
Application: Packer Baler

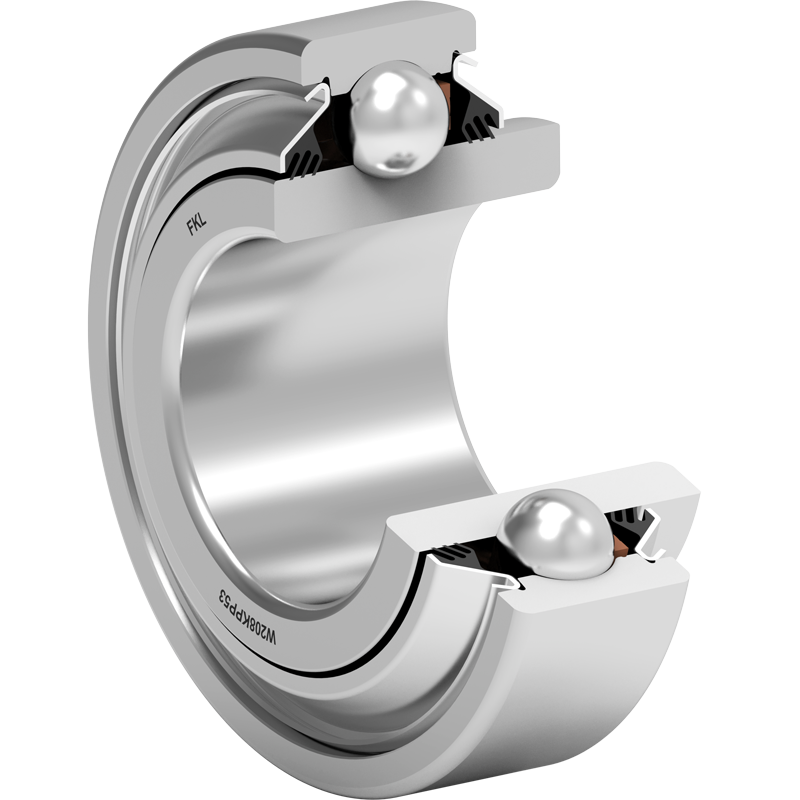

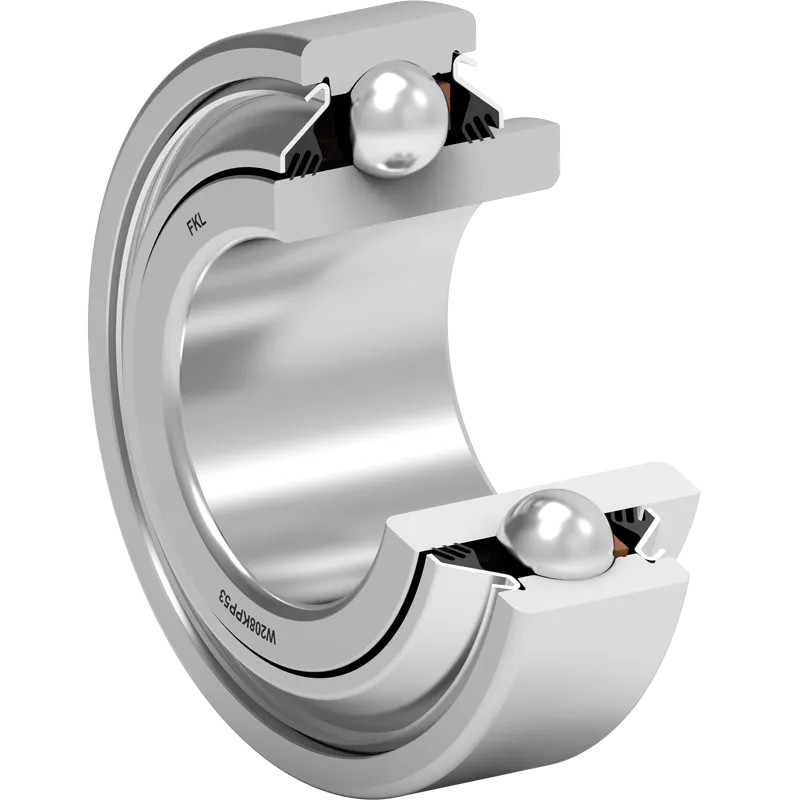

3D view
| D | Outside diameter | 80 | mm |
| d | Bore diameter | 38.1 | mm |
| B | Width inner ring | 36 | mm |
| C | Width outer ring | 22 | mm |
| kg | Mass | 0.541 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.798 | kN |

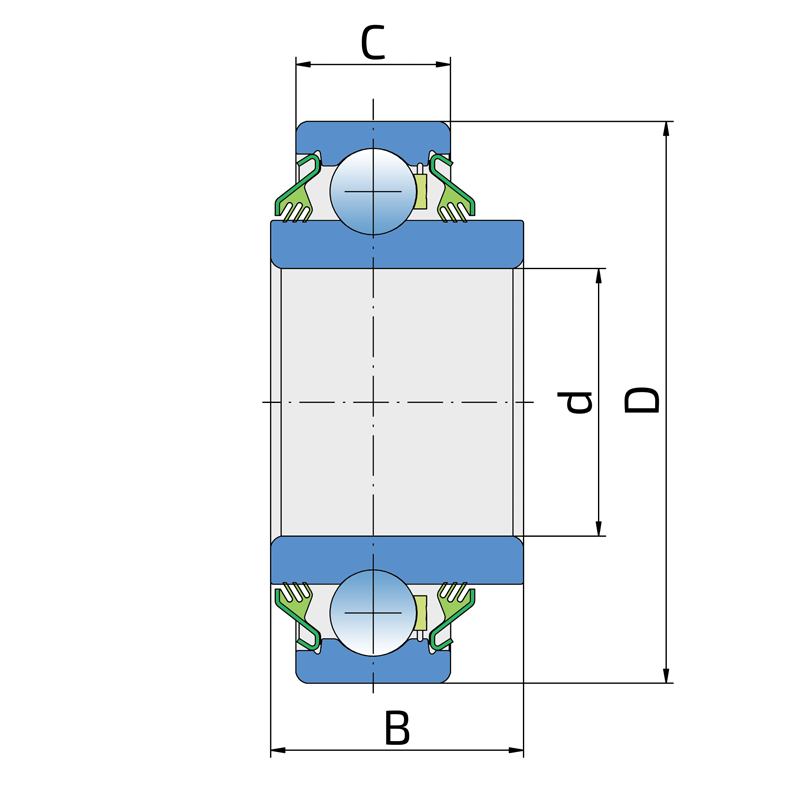

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
