DISC HARROW
GWR 211PPB21
Rubberized Bearing Unit
Application: Disc Harrow

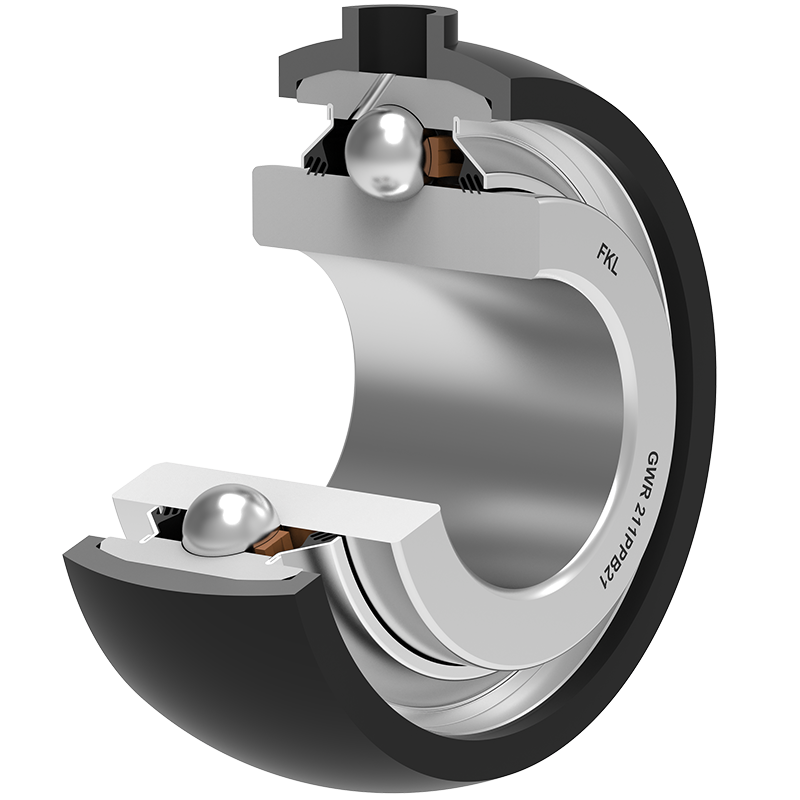

3D view
| d | Bore diameter | 45.212 | mm |
| d | Bore diameter | 1.78 | inch |
| D | Outside diameter | 113 | mm |
| A | Housing width | 44.7 | mm |
| B | Width inner ring | 53.975 | mm |
| B | Width inner ring | 2.125 | inch |
| H1 | Distance from the contact surface to the bearing axis | 60.5 | mm |
| N | Hole diameter | 12.7 | mm |
| kg | Mass | 1.62 | kg |
| Cdyn | Dynamic load rating | 43.5 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.218 | kN |

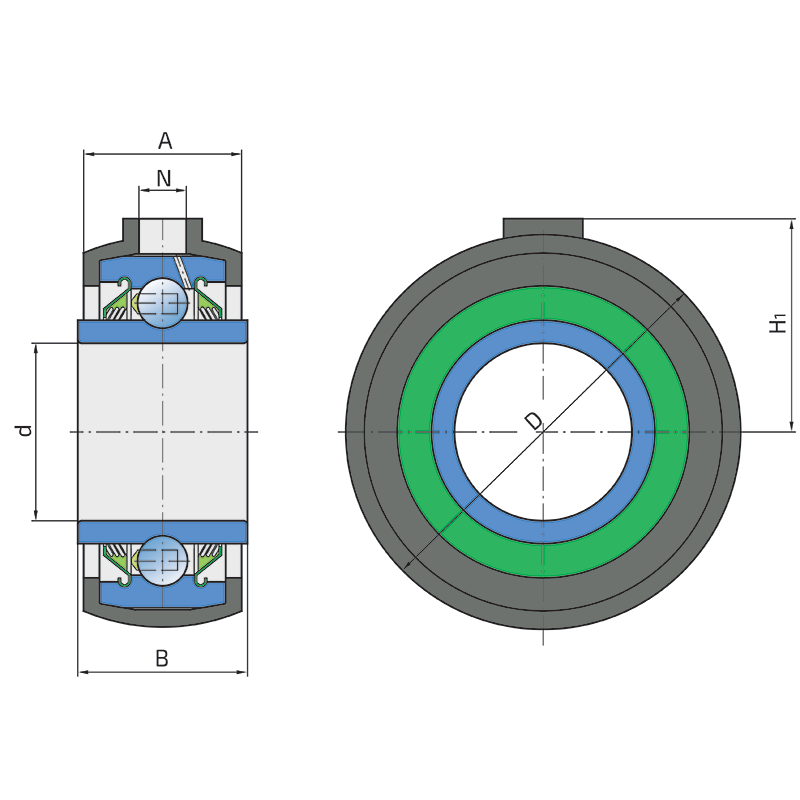

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
