SL 5203.B-2T-A
Double Row Angular Contact Ball Bearing
Application: Seeding Machine

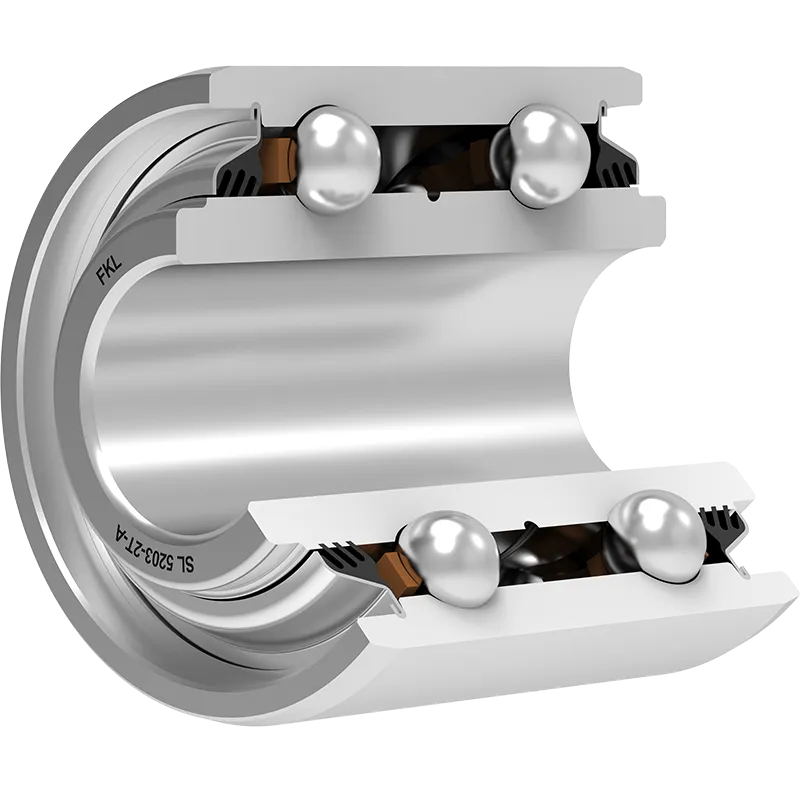

3D view
| d | Bore diameter | 16.256 | mm |
| d1 | Inner ring outside diameter | 23 | mm |
| D | Outside diameter | 40 | mm |
| B | Width inner ring | 43.88 | mm |
| C | D-shape hole cut out dimension | 38.93 | mm |
| α | Contact angle | 20 | ° |
| kg | Mass | 0.218 | kg |
| Cdyn | Dynamic load rating | 14.2 | kN |
| Co | Static load rating | 8.8 | kN |
| Pu | Fatigue load limit | 0.369 | kN |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
