SEEDING MACHINE
885154B.1
Double Row Ball Bearings With Shaft
Application: Seeding Machine

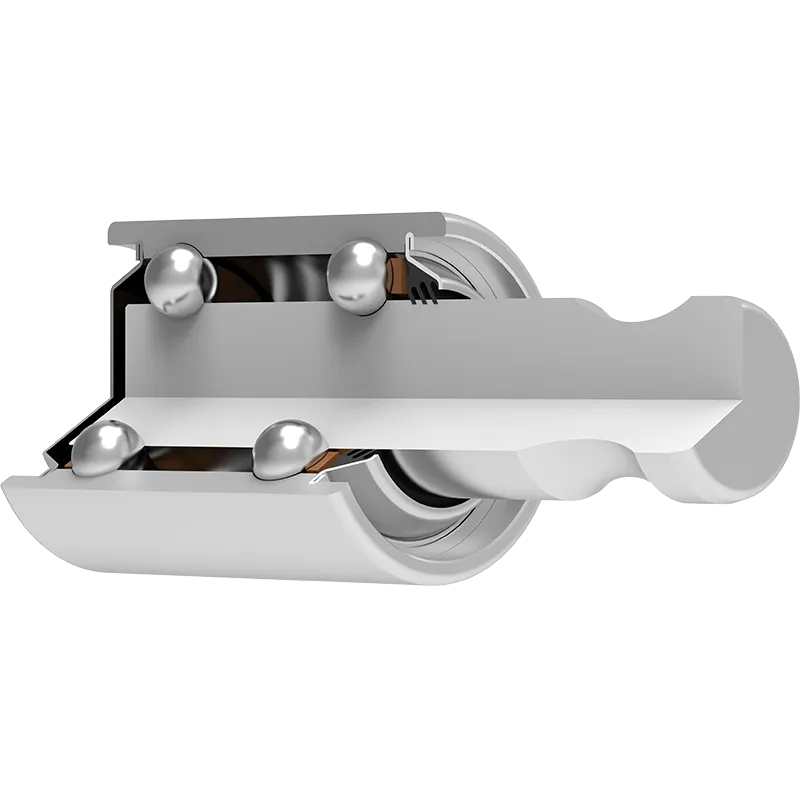

3D view

d | Shaft diameter | 15.88 | mm |
d1 | Shaft diameter at the location of the circular groove | 12 | mm |
D | Outside diameter | 30 | mm |
L | Total length | 69 | mm |
L1 | Total flange length | 38.8 | mm |
E | Length of shaft diameter | 5 | mm |
kg | Mass | 0.183 | kg |
Cdyn | Dynamic load rating | 5.15 | kN |
Co | Static load rating | 2.94 | kN |
Pu | Fatigue load limit | 0.124 | kN |
Tehnical Drawing

Sealing
SHEET METAL SHIELD / T SEAL
Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
Sealing Drawing
