IL60-115/6T-M20

AGRO POINT HUB

Application: Seeding Machine

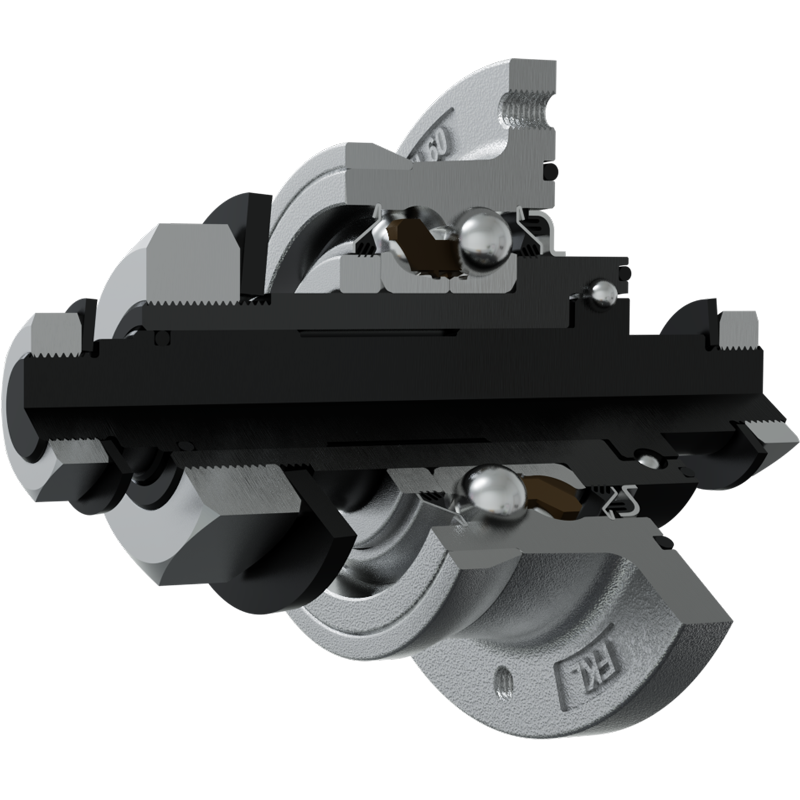

3D view

Technical Specification
JPitch circle diameter115mm
DOutside diameter 135mm
H/THole/Thread6xM8mm
dBore diameter42mm
CD-shape hole cut out dimension39.5mm
MOuther ThreadM39x1.5mm
FLength of threaded part26mm
LTotal length167mm
L1Total flange length48mm
ELength of D shape15mm
kgMass4.214kg
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.37kN

Tehnical Drawing

Sealing

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage

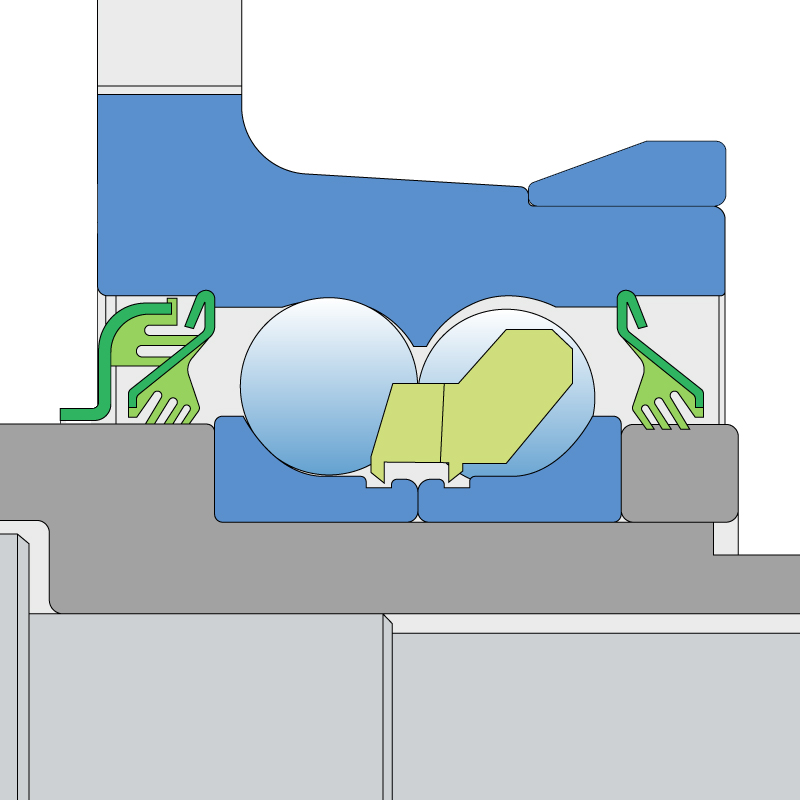

Sealing Drawing

IL60-115/6T-M20

×

IL60-115/6T-M20

×

Sealing Type:

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

IL60-115/6T-M20

×
