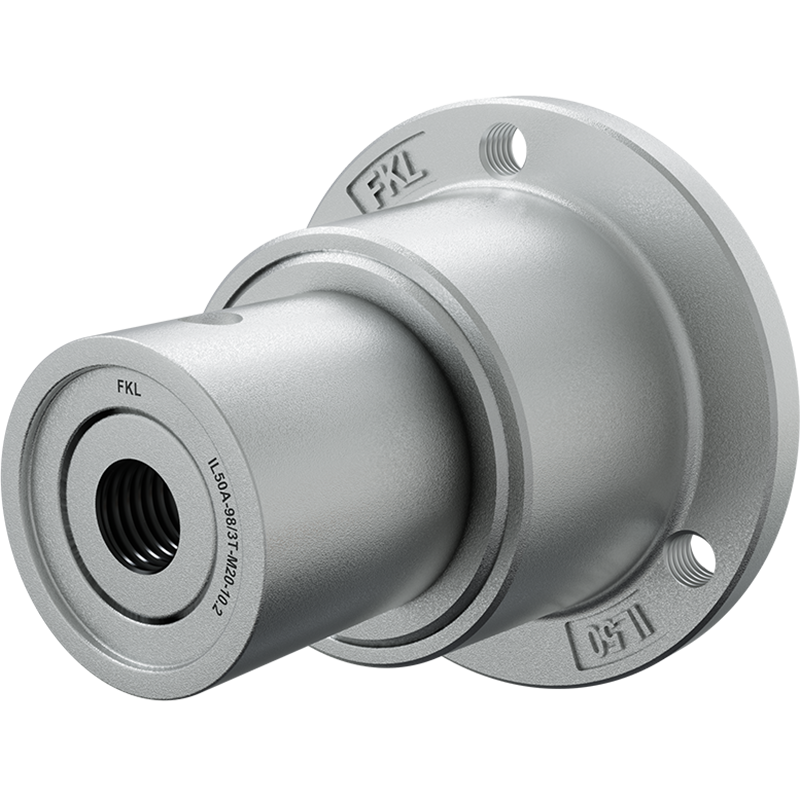

IL50A-98/3T-M20-10.2

Split inner ring double row ball bearing

Application: Single disc seeders, disc harrows, planters

3D view

Technical Specification
JPitch circle diameter98mm
DOutside diameter 117mm
H/THole/Thread3xM12mm
GThreadM20mm
LTotal length111mm
L1Total flange length60mm
FLength of threaded part32mm
kgMass3.188kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.924kN

Tehnical Drawing

Sealing

SHEET METAL SHIELD+RS SEAL / DIRTBLOCK SEAL+FORGED COVER PLATE

Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants.

Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL50A-98/3T-M20-10.2

×

IL50A-98/3T-M20-10.2

×

Sealing Type:

Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants.
