AGRO POINT HUBS

IL50-108/5T-M22x1.5-94.5

Integrated Flange, Maintenance-Free Bearing For Independent Discs

Application: Disc Harrow

3D view

Technical Specification
J	Pitch circle diameter	108	mm
D	Outside diameter	140	mm
H/T	Hole/Thread	5xM12x1.25	mm
d	Bore diameter	28	mm
C	D-shape hole cut out dimension	25.5	mm
M	Outher Thread	M22x1.5	mm
L	Total length	94.5	mm
L1	Total flange length	52.5	mm
E	Length of D shape	13	mm
F	Length of threaded part	29	mm
kg	Mass	2.64	kg
Cdyn	Dynamic load rating	60	kN
Co	Static load rating	45.8	kN
Pu	Fatigue load limit	1.924	kN

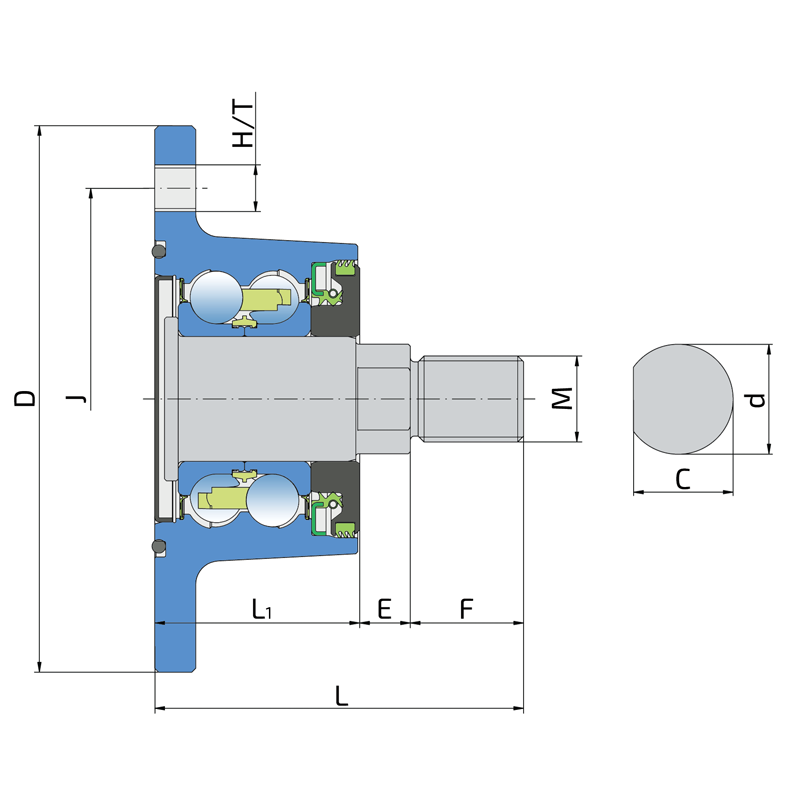

Tehnical Drawing

Sealing

O-RING + SHEET METAL SHIELD + RS SEAL / RS SEAL + RADIAL SHAFT SEAL + TRIPLE LIP SEAL + FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Radial shaft seal, Triple lip seal with Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.

The radial shaft seal prevents fluid from passing through the opening. On the inner side of the seal, closest to the shaft, there is a circular spring that applies pressure to the shaft, thereby preventing fluid leakage even while the shaft is rotating.

Additional triple lip seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.

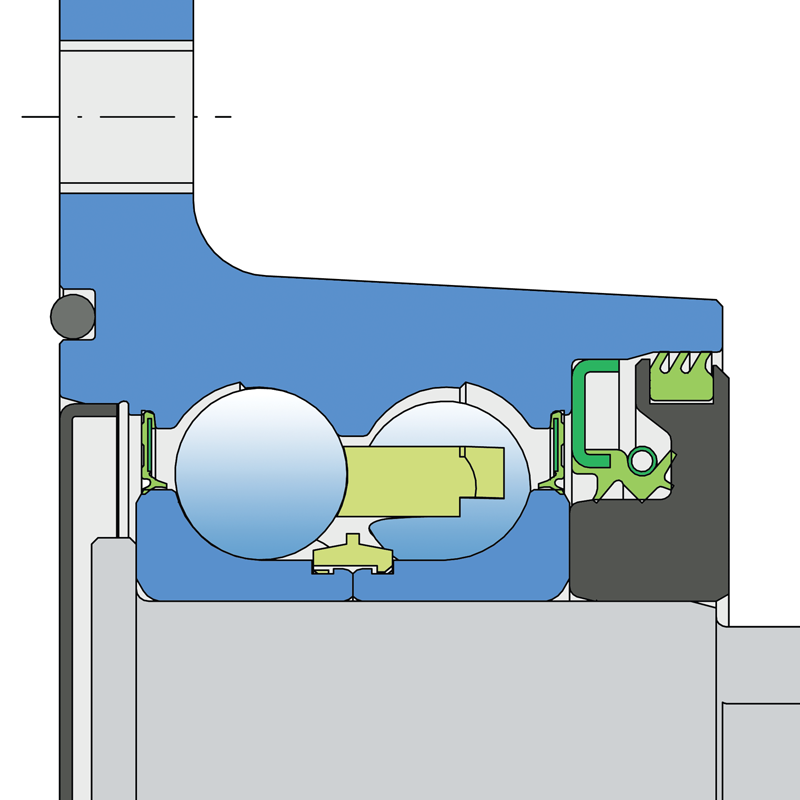

Sealing Drawing
