LE 212 2TB
Y-Ball Bearings With Grub Screw Locking

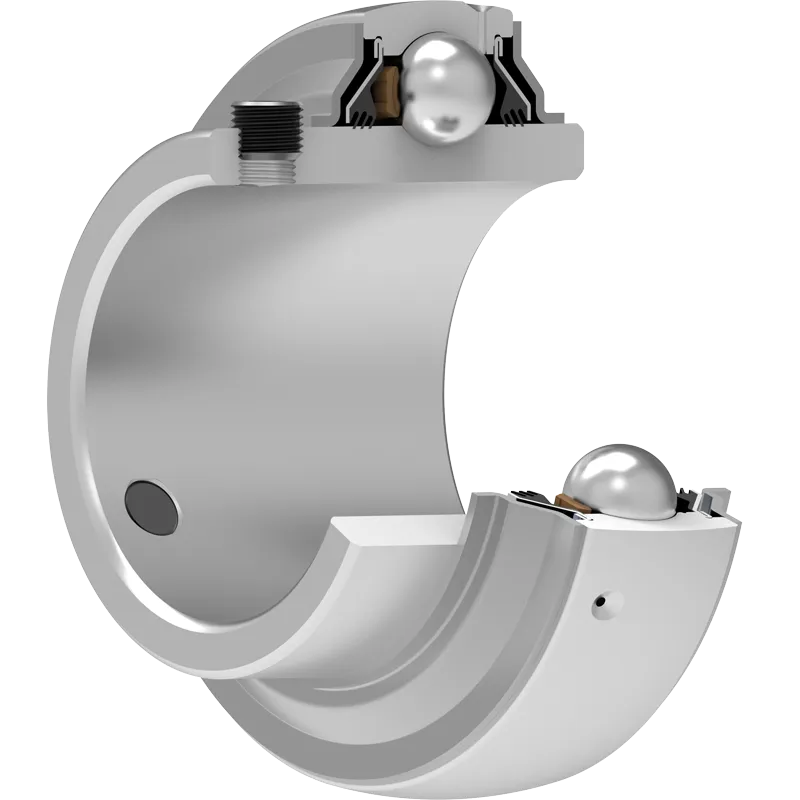

3D view
| d | Bore diameter | 60 | mm |
| D | Outside diameter | 110 | mm |
| B | Width inner ring | 65.1 | mm |
| C | Width outer ring | 26 | mm |
| s | Distance from inner ring side face to raceway centre | 26 | mm |
| d1 | Outer diameter inner ring | 75.5 | mm |
| E | Distance from raceway centre to the hole for lubrication | 7.7 | mm |
| Gs | Set screw | M10x1 | mm |
| sw | Hexagonal key size for set screw | 5 | mm |
| r1,2 | Inner ring Chamfer dimension | 1.5 | mm |
| r3,4 | Outside ring Chamfer dimension | 2 | mm |
| Cdyn | Dynamic load rating | 52.7 | kN |
| Co | Static load rating | 36 | kN |
| Pu | Fatigue load limit | 1.53 | kN |
| kg | Mass | 1.3 | kg |
Tehnical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
