Special Program for Agriculture

LEQFG 208 TDT.H

Bearing unit

Application: Universal Solution

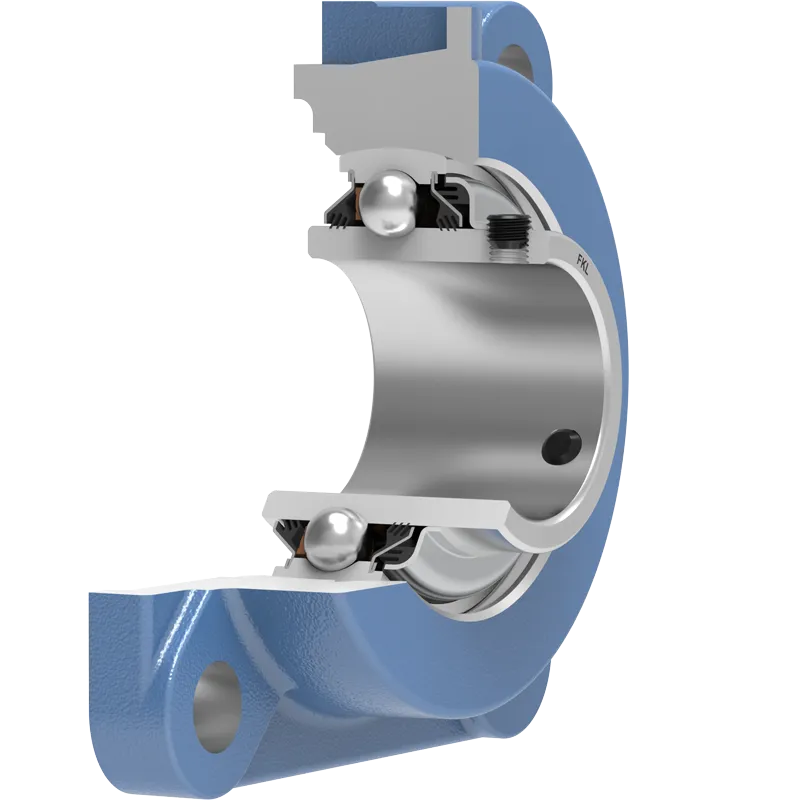

3D view

Technical Specification
d	Bore diameter	40	mm
L	Total length	130	mm
J	Distance between the holes	102	mm
N	Diameter of attachment slot	16	mm
A	Overall width	51.2	mm
A1	Total housing width	36	mm
A2	Housing flange thickness	14	mm
B	Width inner ring	49.2	mm
s	Distance from inner ring side face to raceway centre	18.3	mm
α	Contact angle	50	°
kg	Mass	1.81	kg
Cdyn	Dynamic load rating	46.89	kN
Co	Static load rating	35.07	kN
Pu	Fatigue load limit	1.473	kN

Technical Drawing

Sealing

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.

Sealing Drawing
