LEQNN 206 TDT.H

Bearing unit

Application: Universal Solution

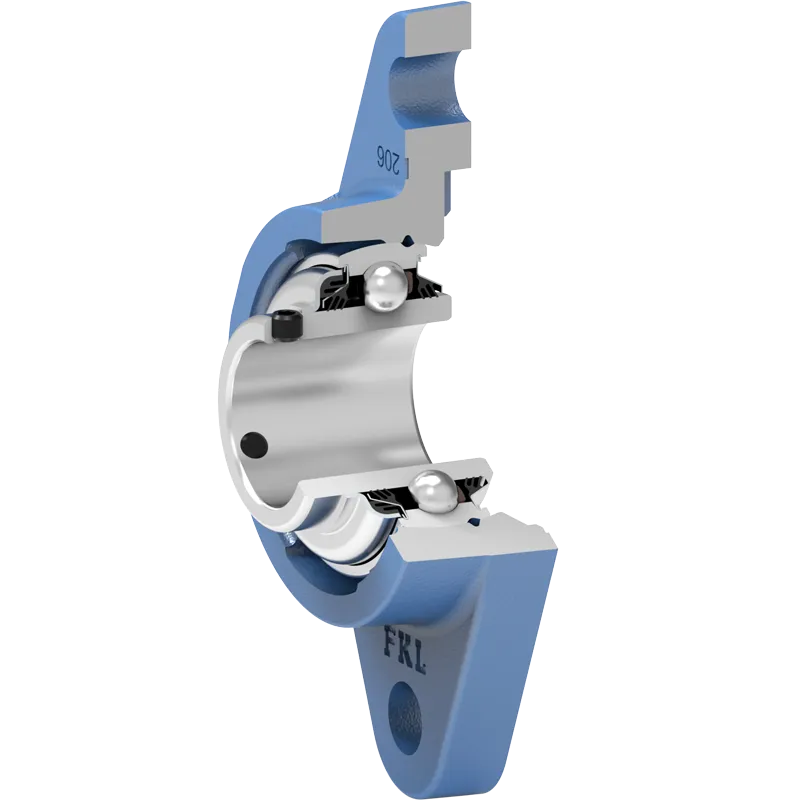

3D view

Technical Specification
d	Bore diameter	30	mm
H	Housing height	148	mm
L	Total length	80	mm
J	Distance between the holes	117	mm
N	Diameter of attachment slot	13.5	mm
A	Overall width	42.1	mm
A1	Total housing width	30.5	mm
A2	Housing flange thickness	13.5	mm
B	Width inner ring	38.1	mm
s	Distance from inner ring side face to raceway centre	14	mm
α	Contact angle	50	°
kg	Mass	0.89	kg
Cdyn	Dynamic load rating	29.58	kN
Co	Static load rating	21.02	kN
Pu	Fatigue load limit	0.88	kN

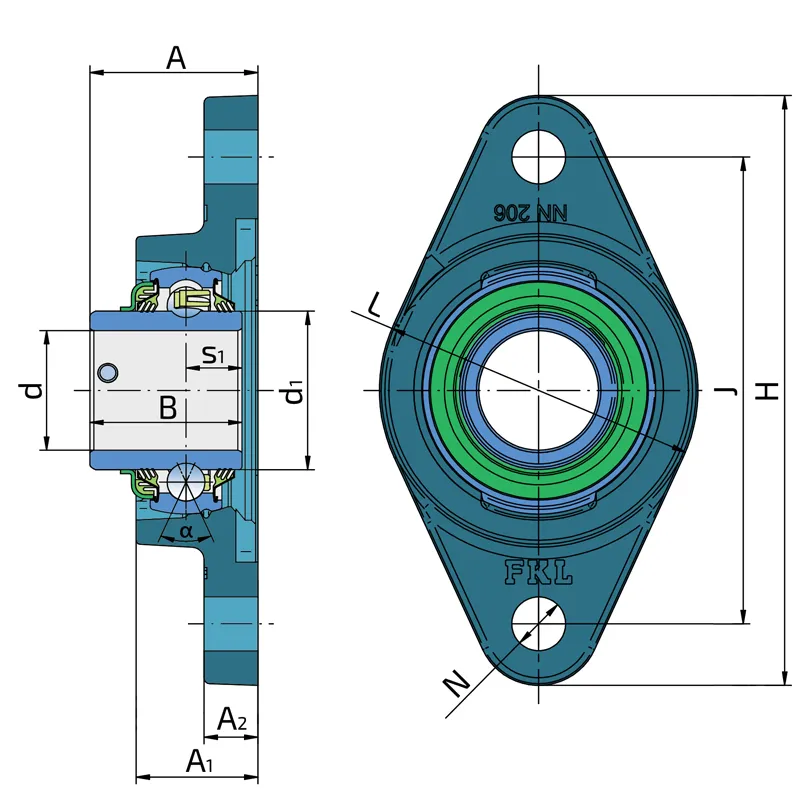

Technical Drawing

Sealing

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.

Sealing Drawing
