BW1-457523
Double Row Angular Contact Ball Bearing
Application: Disc mower

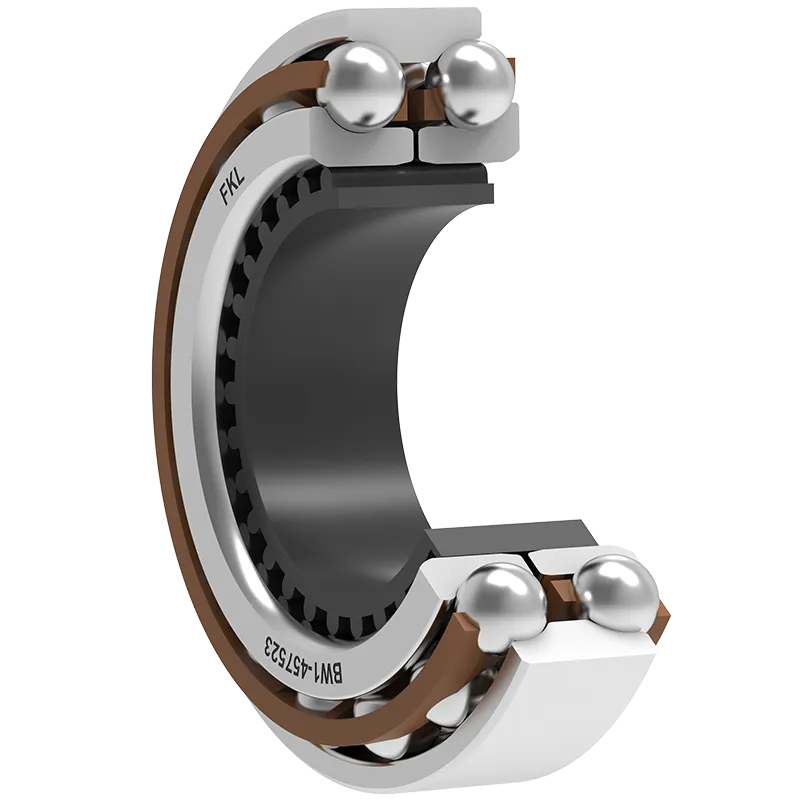

3D view
| d | Bore diameter | 45 | mm |
| D | Outside diameter | 75 | mm |
| B | Width inner ring | 23 | mm |
| C | D-shape hole cut out dimension | 15 | mm |
| α | Contact angle | 34 | ° |
| kg | Mass | 0.345 | kg |
| Cdyn | Dynamic load rating | 35 | kN |
| Co | Static load rating | 34 | kN |
| Pu | Fatigue load limit | 1.428 | kN |
Tehnical Drawing
Sealing
Sealing Drawing
