IL30-98/5T-B30
The Bearing Solution For Harsh Seeding Conditions And Coulter Discs Of Ploughs, Integrated Flange
Application: Seeding machines for No-till and Strip-till farming technology; Coulter discs for seeding machines; Marker discs for ploughs

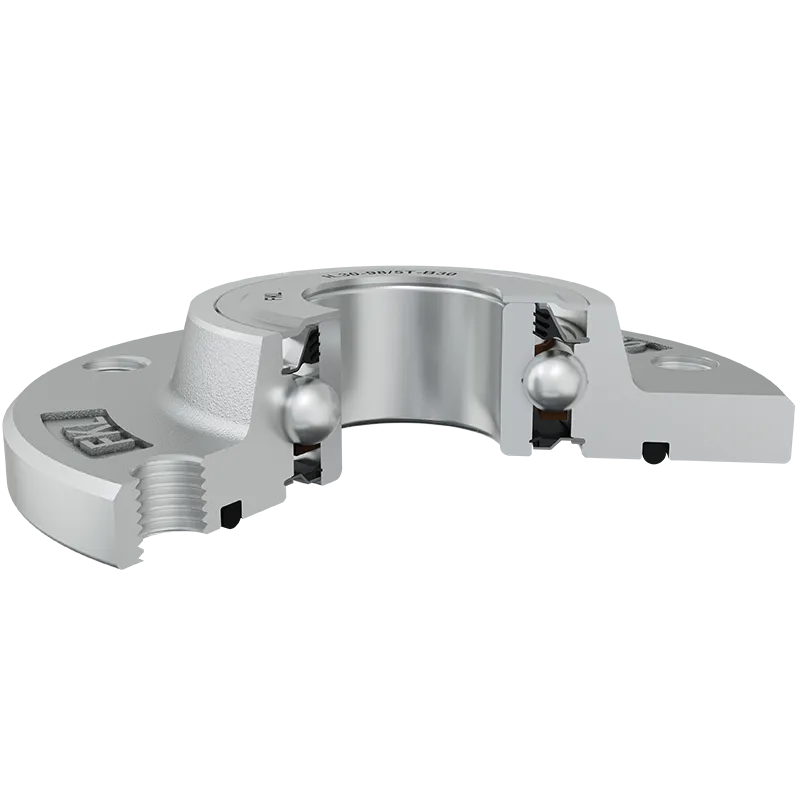

3D view
| J | Pitch circle diameter | 98 | mm |
| D | Outside diameter | 117 | mm |
| H/T | Hole/Thread | 5xM12x1.5 | mm |
| d1 | Bore diameter | 30 | mm |
| L1 | Total flange length | 24.8 | mm |
| kg | Mass | 0.93 | kg |
| Cdyn | Dynamic load rating | 29.6 | kN |
| Co | Static load rating | 21 | kN |
| Pu | Fatigue load limit | 0.88 | kN |
Tehnical Drawing
Sealing
S SEAL / T SEAL
S seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
Sealing Drawing
