AGRO POINT HUBS
IL60-115/8T-M39-M20
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

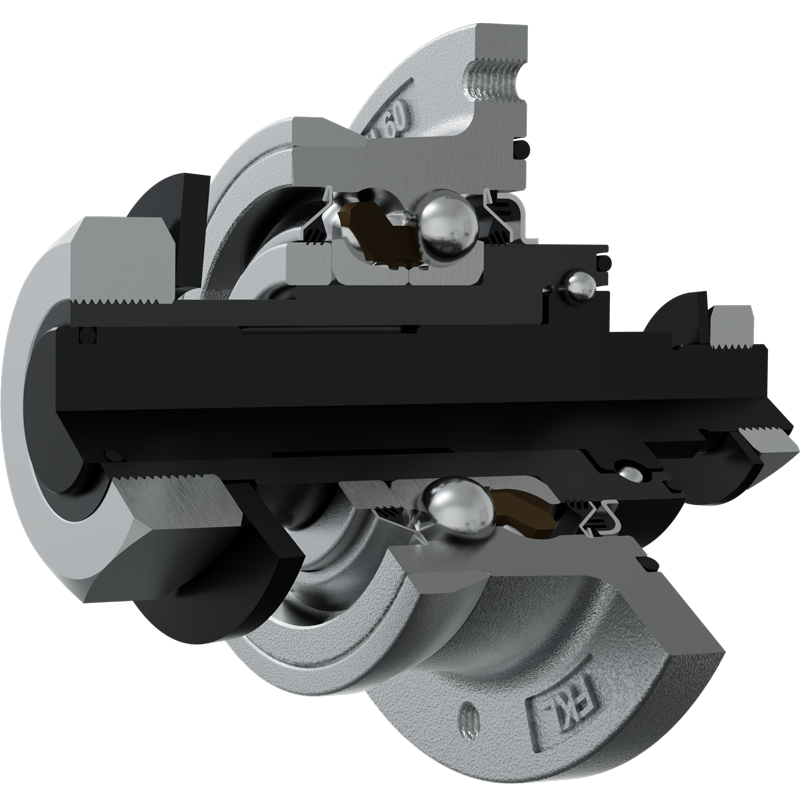

3D view
| J | Pitch circle diameter | 115 | mm |
| D | Outside diameter | 135 | mm |
| H/T | Hole/Thread | 8xM10x1.5 | mm |
| d | Shaft diameter | 42 | mm |
| C | D-shape hole cut out dimension | 39.5 | mm |
| M | Outher Thread | M39x1.5 | mm |
| F | Length of threaded part | 26 | mm |
| L | Total length | 147 | mm |
| L1 | Total flange length | 47.9 | mm |
| E | Length of D shape | 15 | mm |
| kg | Mass | 4.07 | kg |
| Cdyn | Dynamic load rating | 66.35 | kN |
| Co | Static load rating | 56.49 | kN |
| Pu | Fatigue load limit | 2.373 | kN |

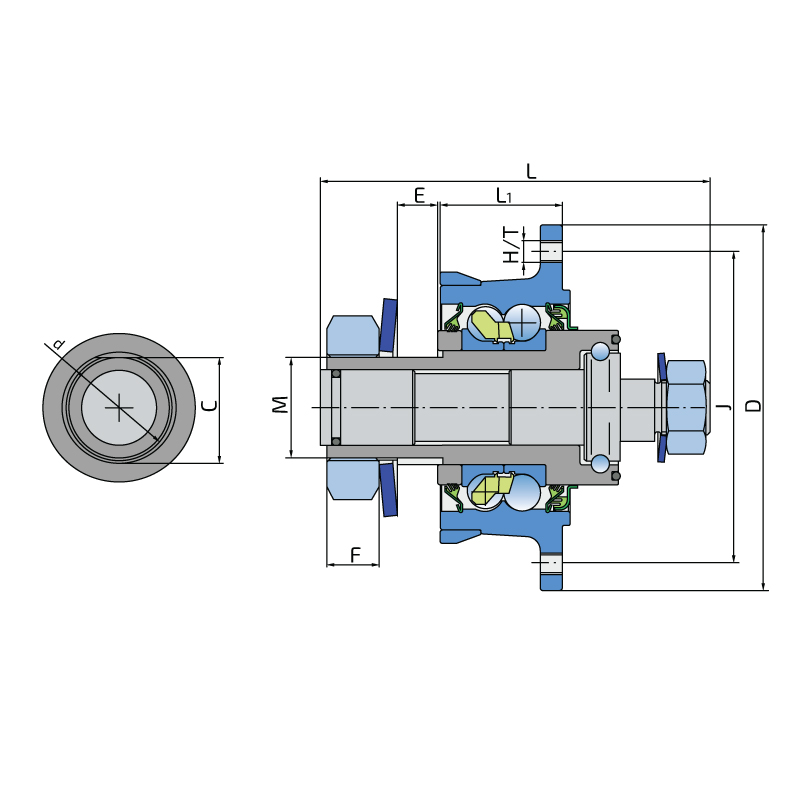

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
Double 3-lip seal on the base side and a 3-lip seal on the front side.
The double 3-lip seal on the base side protects the bearing from contaminant ingress. Additionally, the front 3-lip seal provides extra sealing and protects the inner seal from mechanical damage.
Sealing Drawing
