AGRO POINT HUBS

IL50B-108/5T-M24x2-DIN1587-RH

The Bearing Solution For Seeding Machines, Integrated Flange

Application: Seeding machine

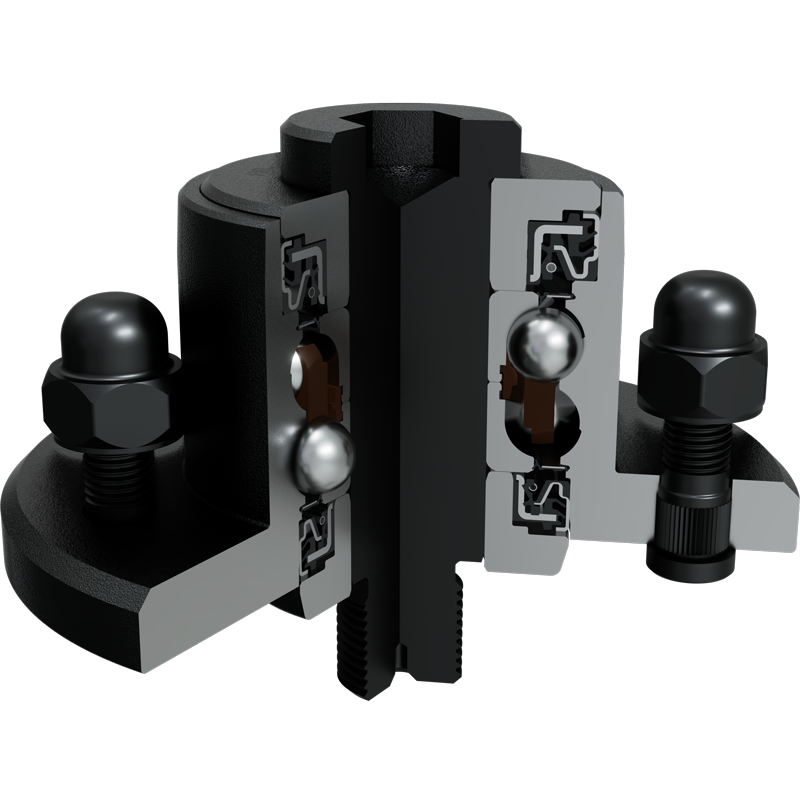

3D view

Technical Specification
J	Pitch circle diameter	108	mm
D	Outside diameter	145	mm
D1	Centar bore on the disc	79	mm
M	Outher Thread	M24x2-RH	mm
L	Total length	108	mm
L1	Stud thread length	20	mm
L2	The distance from the mounting surface to the front of the flange on which the disc is installed	20.5	mm
F	Length of threaded part	24	mm
kg	Mass	3.99	kg
Cdyn	Dynamic load rating	60	kN
Co	Static load rating	45.8	kN
Pu	Fatigue load limit	1.924	kN

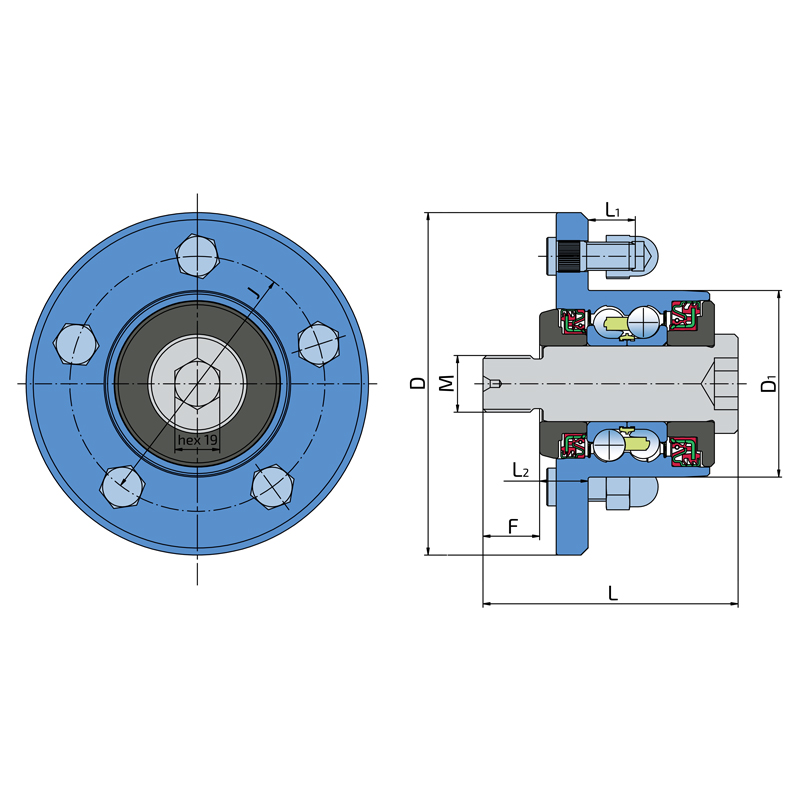

Tehnical Drawing

Sealing

FORGED COVER PLATE + DIRTBLOCK SEAL + RS SEAL / RS SEAL + DIRTBLOCK SEAL + FORGED COVER PLATE

RS seal and Dirtblock seal with a cover plate on both sides provide equal protection against contaminants.

The Dirtblock seal is designed for heavy-duty operation in harsh environments. The half-metal / half-rubber outer diameter ensures reliable retention in the bore and improves sealing performance. The inner diameter is covered with rubber, which further enhances sealing efficiency and enables easy installation.
This sealing system provides maximum protection against both liquid and solid contaminants, which significantly extends the bearing service life.

The forged cover plate protects the Dirtblock seal from mechanical damage.

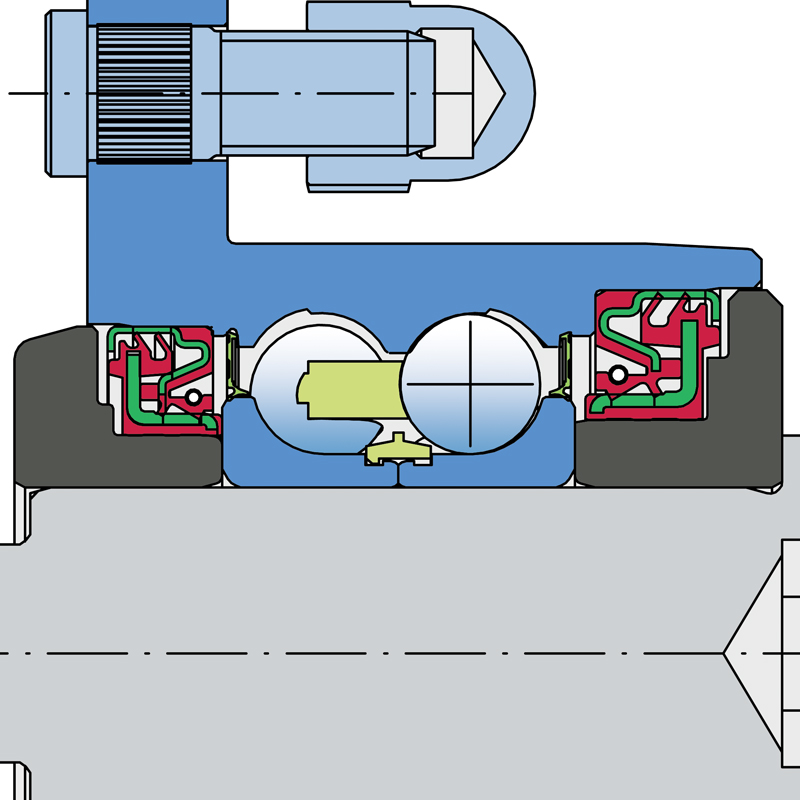

Sealing Drawing
