IL60-125/6T-2xM20

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc Harrow

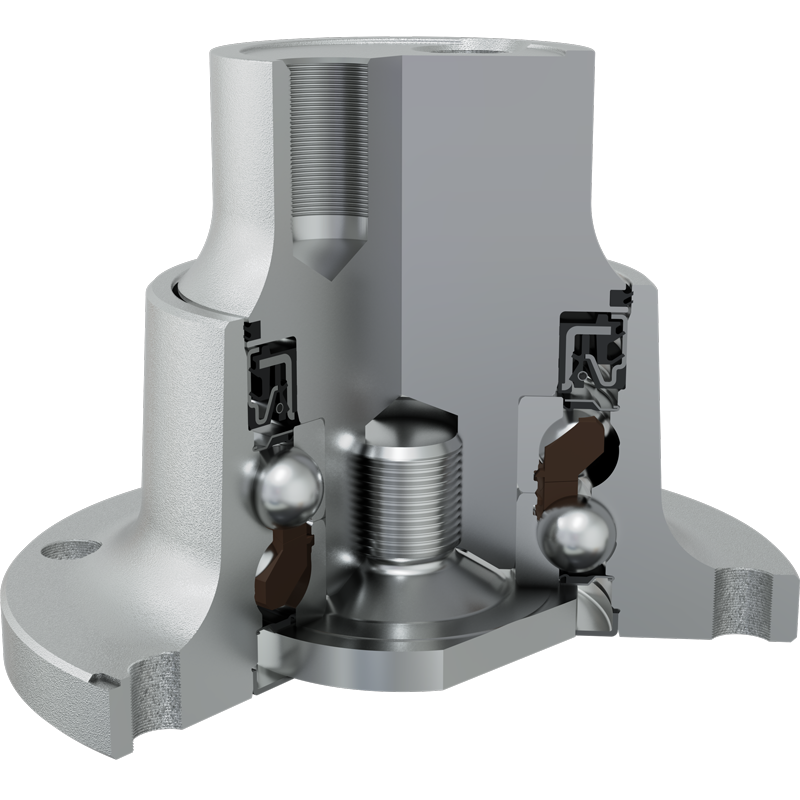

3D view

Technical Specification
J	Pitch circle diameter	125	mm
D	Outside diameter	145	mm
D1	Shaft outside diameter	66	mm
d	Counterbore diameter	56	mm
C	Distance between holes	38	mm
H/T	Hole/Thread	6xM12	mm
F	Length of threaded part	27	mm
G	Internal Thread	2xM20	mm
L	Total length	106.5	mm
L1	Counterbore depth	1	mm
kg	Mass	4.8	kg
Cdyn	Dynamic load rating	75.86	kN
Co	Static load rating	66.2	kN
Pu	Fatigue load limit	2.78	kN

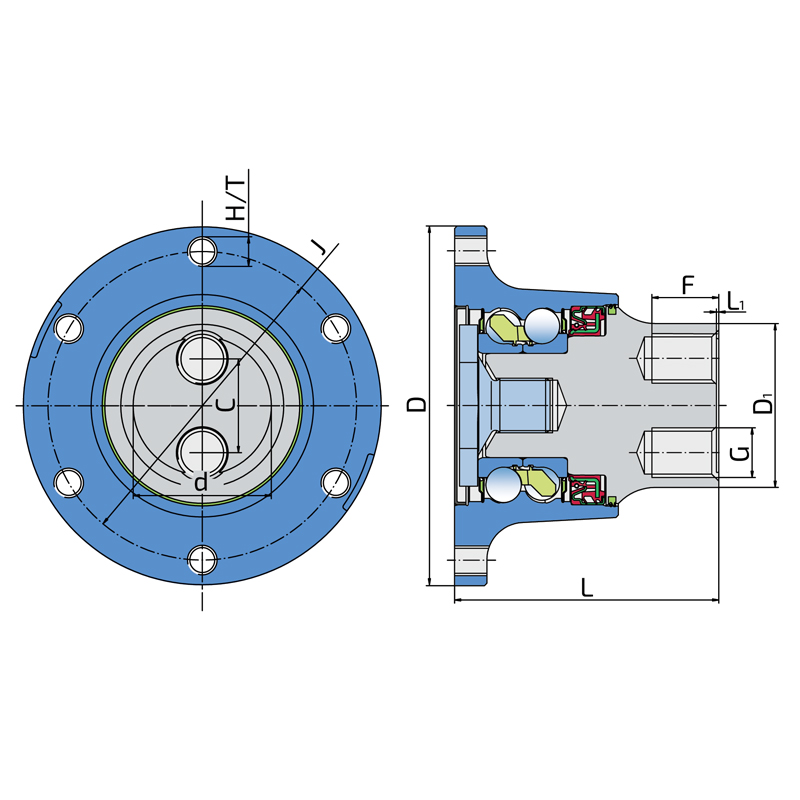

Tehnical Drawing

Sealing

SHEET METAL SHIELD + S SEAL / S SEAL + DIRTBLOCK SEAL + DOUBLE SEAL

The sheet metal shield and S-seal, together with the attached disc, eliminate the possibility of contamination from the flange side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation.

The additional double lip seal protects the bearing from contaminant ingress and ensures a longer service life of the bearing.

Sealing Drawing
