IL20-60/6T-B16-ZP
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding machine

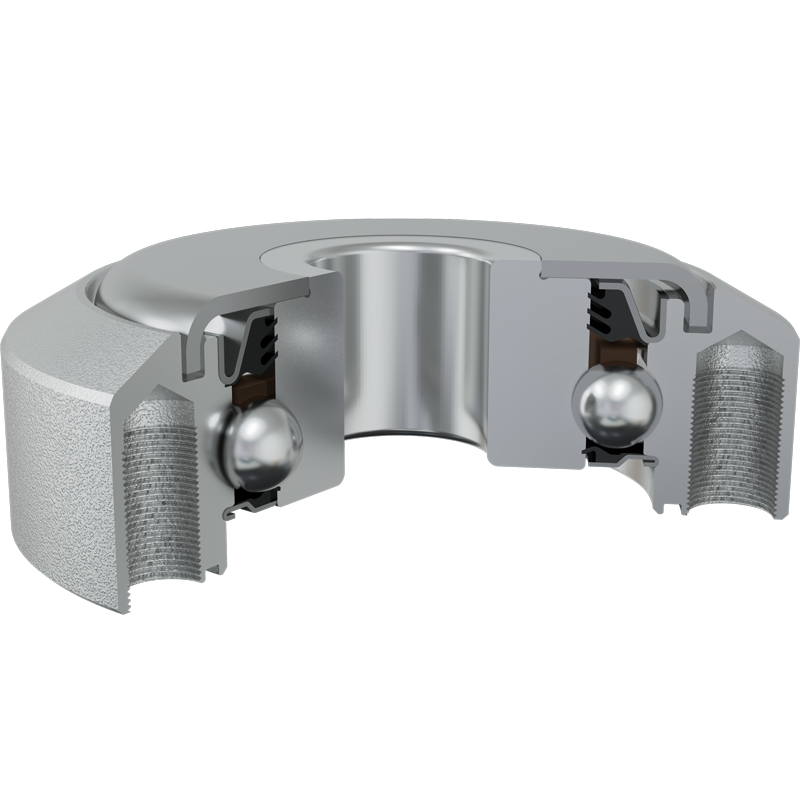

3D view
| J | Pitch circle diameter | 60 | mm |
| D | Outside diameter | 70 | mm |
| H/T | Hole/Thread | 6xM8 | mm |
| F | Length of threaded part | 13 | mm |
| d1 | Bore diameter | 16 | mm |
| L | Overall length | 23 | mm |
| L2 | Bearing width | 19 | mm |
| kg | Mass | 0.45 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.638 | kN |

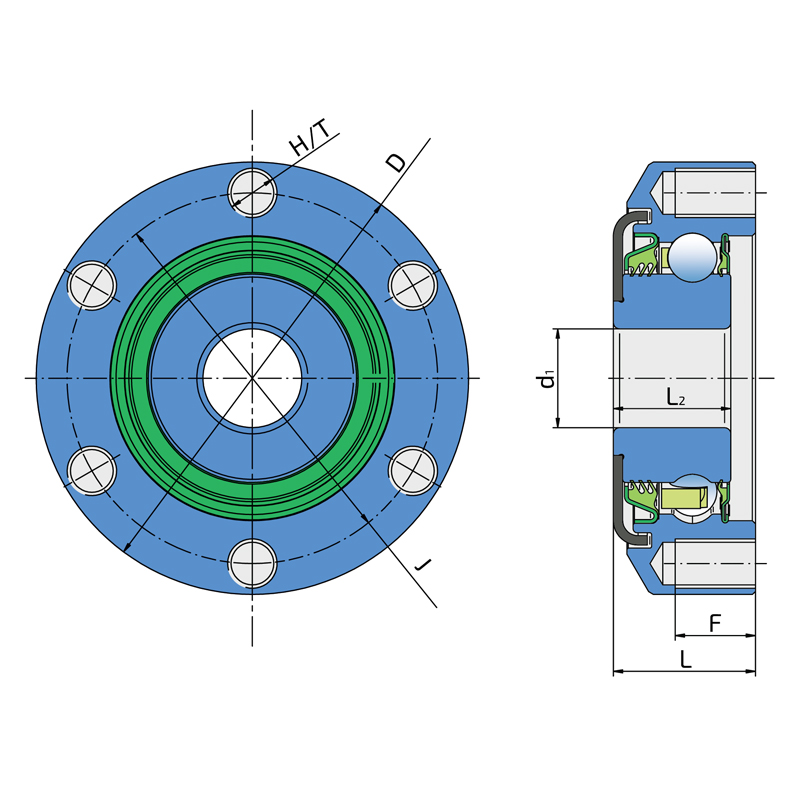

Tehnical Drawing
Sealing
METAL SHIELD + T SEAL / S SEAL
The combination of a metal shield, 3-lip seal on the front side, and an S-seal on the base side provides reliable protection of the bearing against contamination.
The S-seal on the base side and the 3-lip seal on the front side protect the bearing from the ingress of dirt, mud, dust, and water in demanding operating conditions.
This solution ensures a long bearing service life and reduces maintenance requirements.

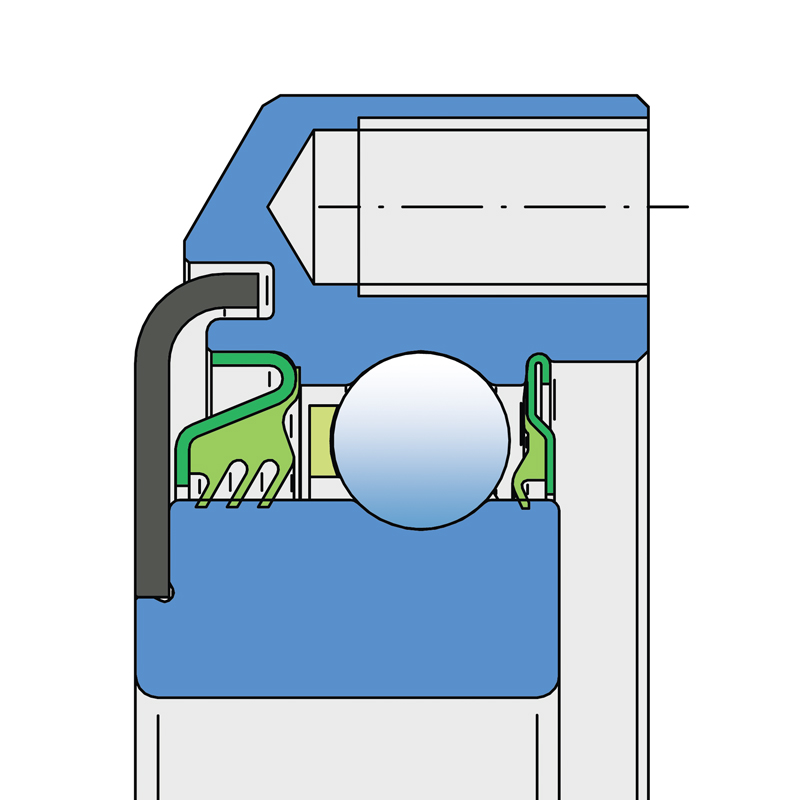

Sealing Drawing
