AGRO POINT HUBS

IL40-120/6T-2xM16

Integrated Flange, Maintenance Free Bearing

Application: Disc Harrow

3D view

Technical Specification
J	Pitch circle diameter	120	mm
D	Outside diameter	145	mm
D1	Centar bore on the disc	90	mm
d	Shaft diameter	44	mm
d1	Shaft diameter	33	mm
d2	Length of the flattened part of the shaft	15	mm
C	D-shape hole cut out dimension	2x22	mm
G	Internal Thread	M16x1.5	mm
L	Total length	155.5	mm
L1	Total flange length	47	mm
L2	Distance from the front end of the shaft to the flange face	83.5	mm
F	Length of threaded part	30	mm
kg	Mass	3.08	kg
Cdyn	Dynamic load rating	42.9	kN
Co	Static load rating	36.3	kN
Pu	Fatigue load limit	1.525	kN

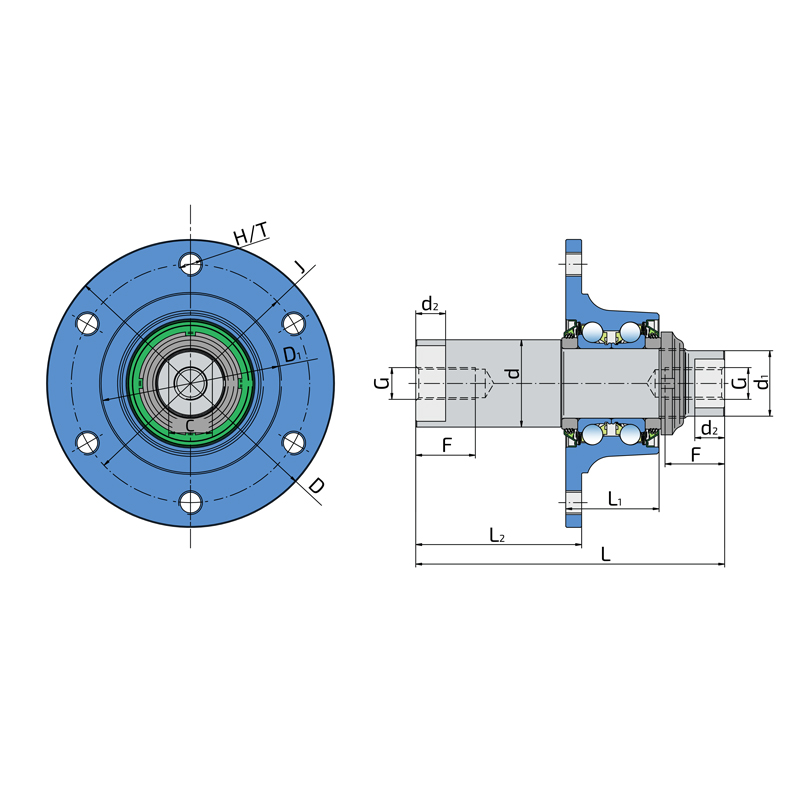

Tehnical Drawing

Sealing

T SEAL + RS SEAL / RS SEAL + T SEAL

Trousna zaptivka zajedno sa RS zaptivkom obezbeđuje optimalnu zaštitu ležaja od prodora nečistoća, vlage i prašine.

Trousna zaptivka služi kao primarna barijera protiv spoljašnjih kontaminanata, dok RS zaptivka dodatno sprečava curenje maziva i štiti unutrašnji prostor ležaja. Ova kombinacija omogućava dugotrajan rad i pouzdanost u teškim radnim uslovima.

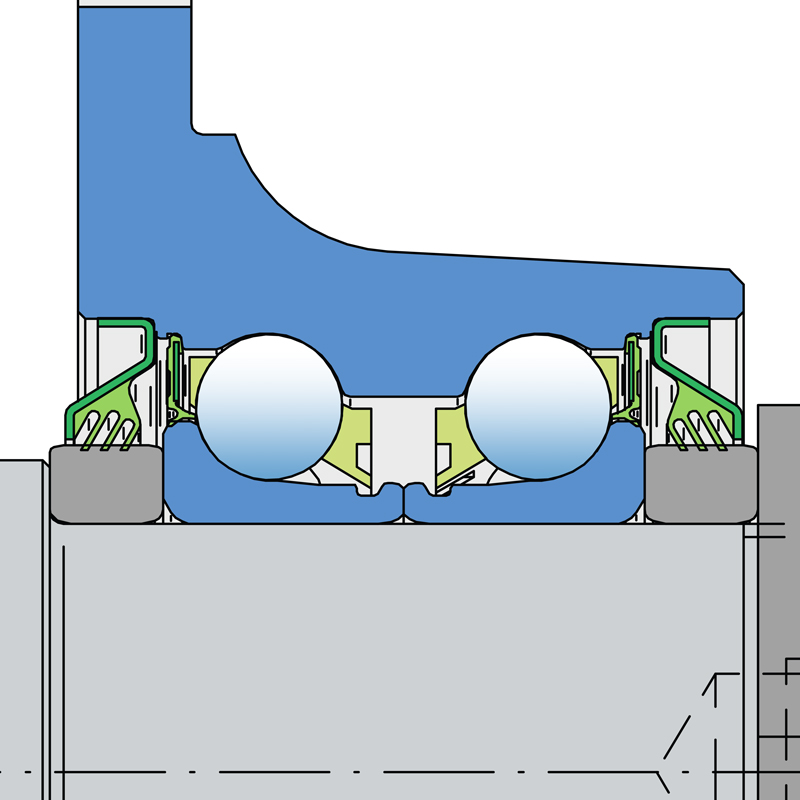

Sealing Drawing
