Y BEARING UNITS
UYF 211 SF
Y-Bearing Flanged Units With Square Grey Cast Iron Housing "F"

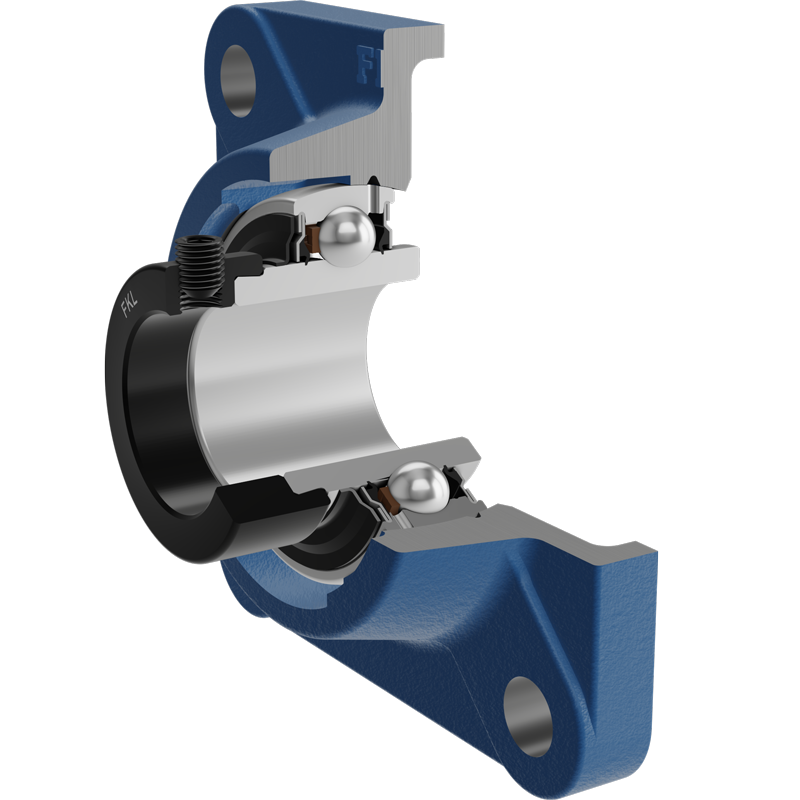

3D view
| d | Bore diameter | 55 | mm |
| L | Overall length | 162 | mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 65.3 | mm |
| A1 | Total housing width | 43 | mm |
| A2 | Housing flange thickness | 17 | mm |
| J | Distance between the holes | 130 | mm |
| N | Diameter of attachment slot | 19 | mm |
| kg | Mass | 3.2 | kg |
| Cdyn | Dynamic load rating | 43.6 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.25 | kN |

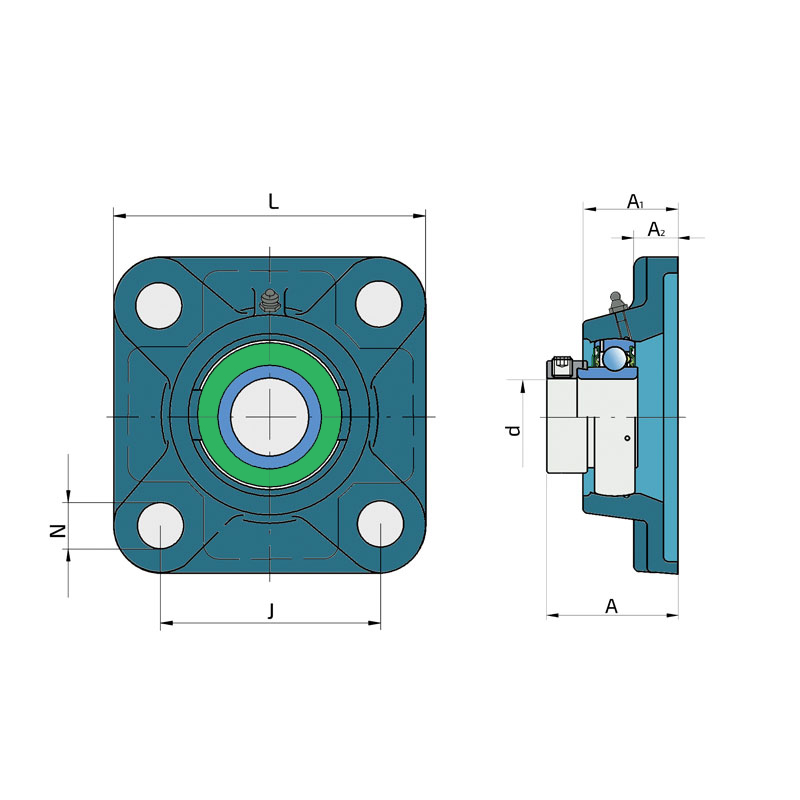

Tehnical Drawing
Sealing
S SEAL / F SEAL (SF)
S seal on the base side and F seal on the front side which is exposed to contaminants.
The F seal on the front side protects the bearing from contaminant penetration.

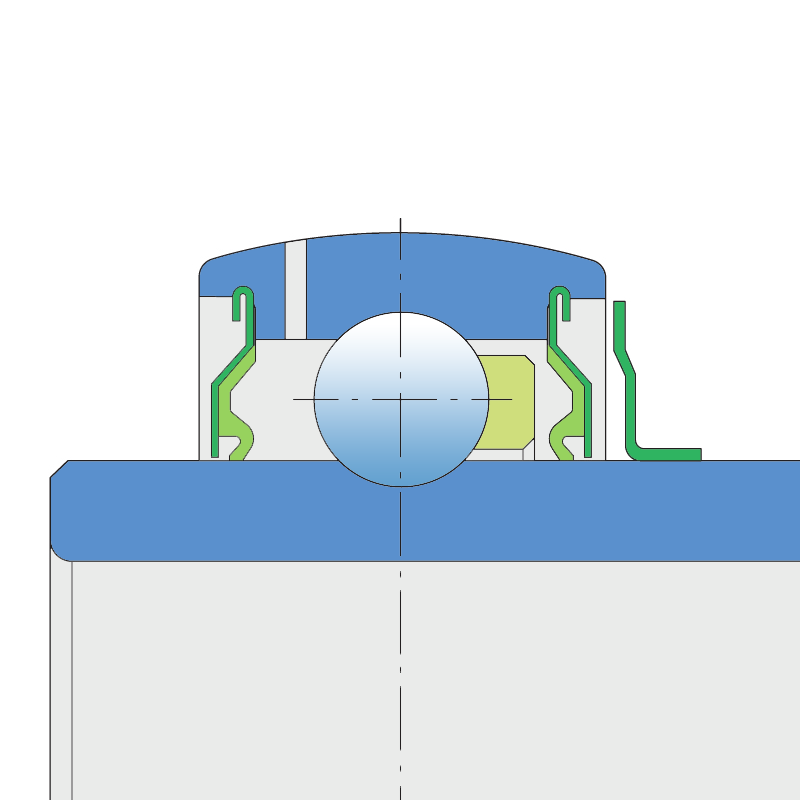

Sealing Drawing
