Y BEARINGS
LY 211-200 TDT
Y-Ball Bearings With Eccentric Locking Collar

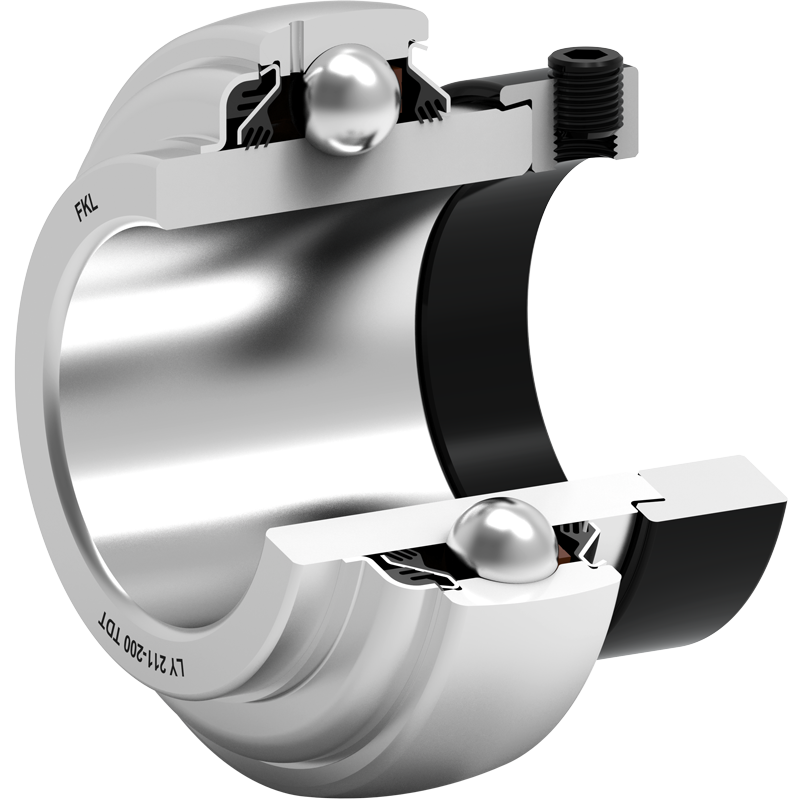

3D view
| d | Bore diameter | 50.8 | mm |
| D | Outside diameter | 100 | mm |
| B | Width inner ring | 55.6 | mm |
| C | Width outer ring | 25 | mm |
| s | Distance from inner ring side face to raceway centre | 27.8 | mm |
| d1 | Outer diameter inner ring | 69.06 | mm |
| E | Distance from raceway centre to the hole for lubrication | 7 | mm |
| Gs | Set screw | 3/8-24 UNF | inch |
| sw | Hexagonal key size for set screw | 4.763 | mm |
| sw | Hexagonal key size for set screw | 3/16 | inch |
| r1,2 | Inner ring Chamfer dimension | 1 | mm |
| r3,4 | Outside ring Chamfer dimension | 1.5 | mm |
| B1 | Width inner ring with locking collar | 71.45 | mm |
| d2 | Locking collar outside diameter | 74.5 | mm |
| B2 | Width locking collar | 20.6 | mm |
| kg | Mass | 1.5 | kg |
| Cdyn | Dynamic load rating | 43.6 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.22 | kN |

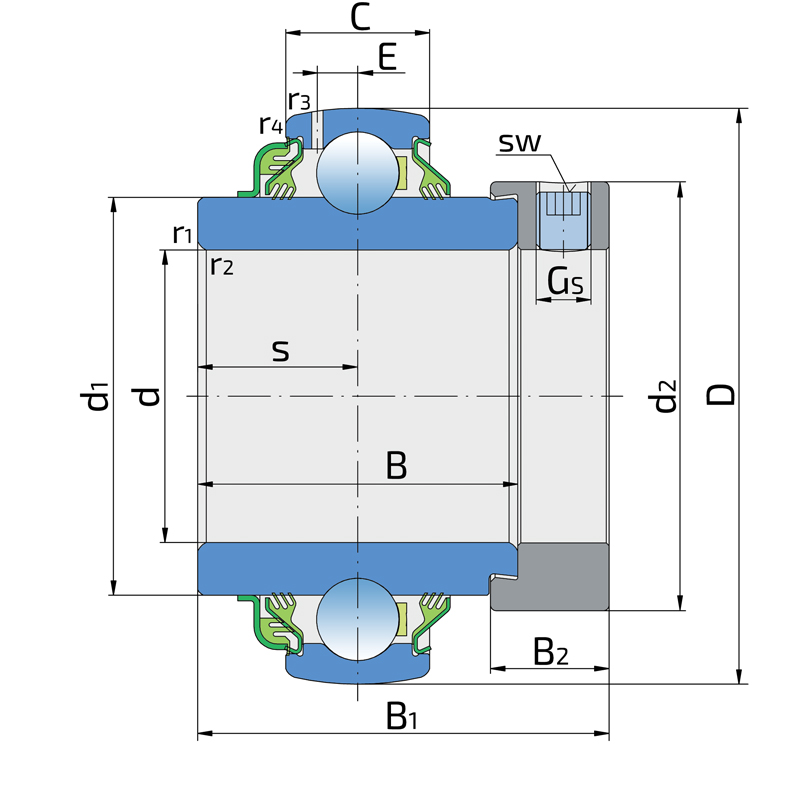

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.

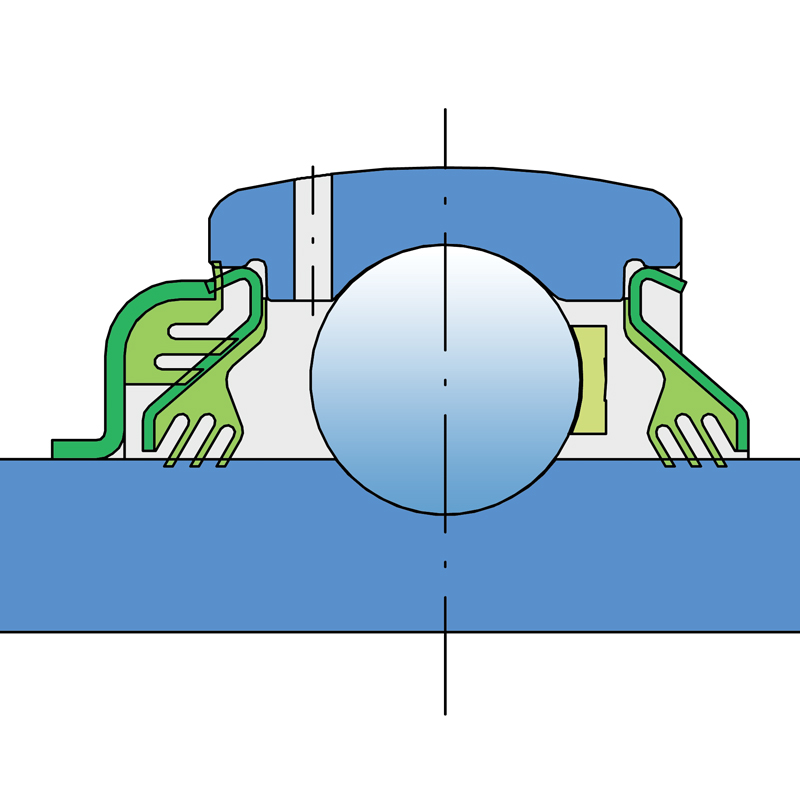

Sealing Drawing
