Y BEARINGS
UY 211 SF
Y-Ball Bearings With Eccentric Locking Collar

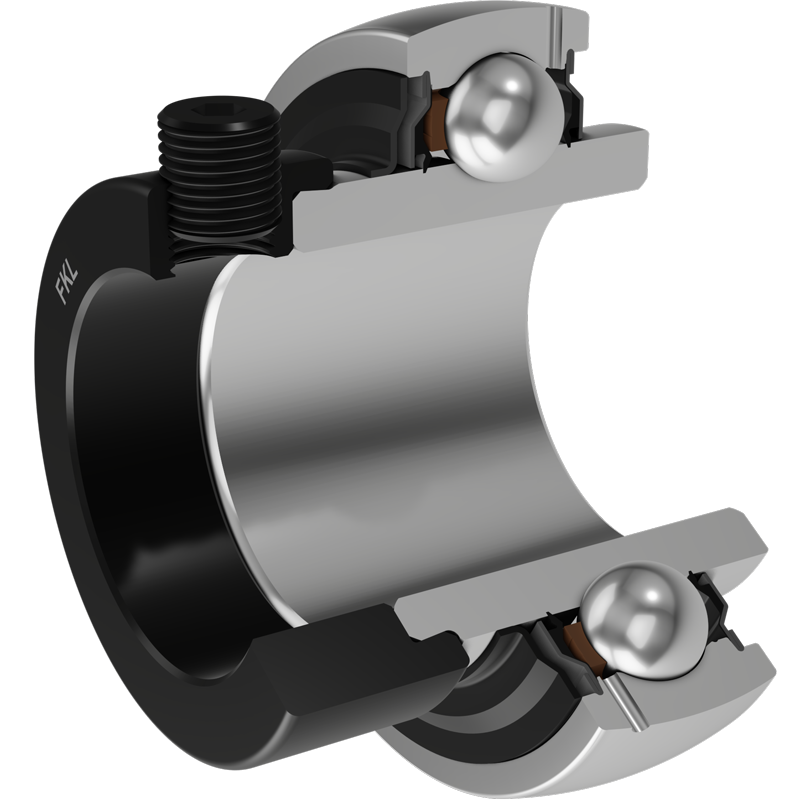

3D view
| d | Bore diameter | 55 | mm |
| D | Outside diameter | 100 | mm |
| B | Width inner ring | 37 | mm |
| C | Width outer ring | 25 | mm |
| s | Distance from inner ring side face to raceway centre | 12.5 | mm |
| d1 | Outer diameter inner ring | 69.1 | mm |
| E | Distance from raceway centre to the hole for lubrication | 7 | mm |
| Gs | Set screw | M10x1 | mm |
| sw | Hexagonal key size for set screw | 5 | mm |
| r1,2 | Inner ring Chamfer dimension | 1 | mm |
| r3,4 | Outside ring Chamfer dimension | 0.6 | mm |
| B1 | Width inner ring with locking collar | 53 | mm |
| d2 | Locking collar outside diameter | 74.5 | mm |
| B2 | Width locking collar | 20.6 | mm |
| kg | Mass | 1.25 | kg |
| Cdyn | Dynamic load rating | 43.6 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.25 | kN |
Tehnical Drawing
Sealing
S SEAL / F SEAL (SF)
S seal on the base side and F seal on the front side which is exposed to contaminants.
The F seal on the front side protects the bearing from contaminant penetration.
