UNIVERSAL SOLUTION
LEFG 209 TDT
Armor Bearing Unit
Application: Universal Solution
3D view
| d | Bore diameter | 45 | mm |
| A1 | Total housing width | 38 | mm |
| A2 | Housing flange thickness | 16 | mm |
| J | Distance between the holes | 105 | mm |
| L | Total length | 137 | mm |
| N | Hole diameter | 16 | mm |
| A | Overall width | 52.2 | mm |
| kg | Mass | 2.41 | kg |
| Cdyn | Dynamic load rating | 33.2 | kN |
| Co | Static load rating | 21.9 | kN |
| Pu | Fatigue load limit | 0.92 | kN |

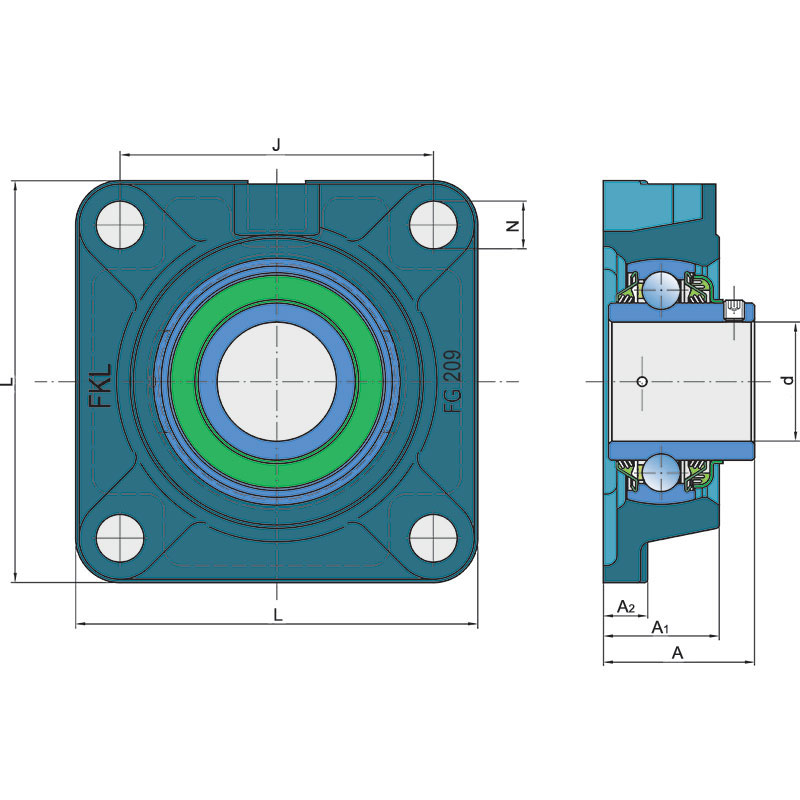

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
