560.04.010
Clutch release bearing
Application: Gearbox clutch

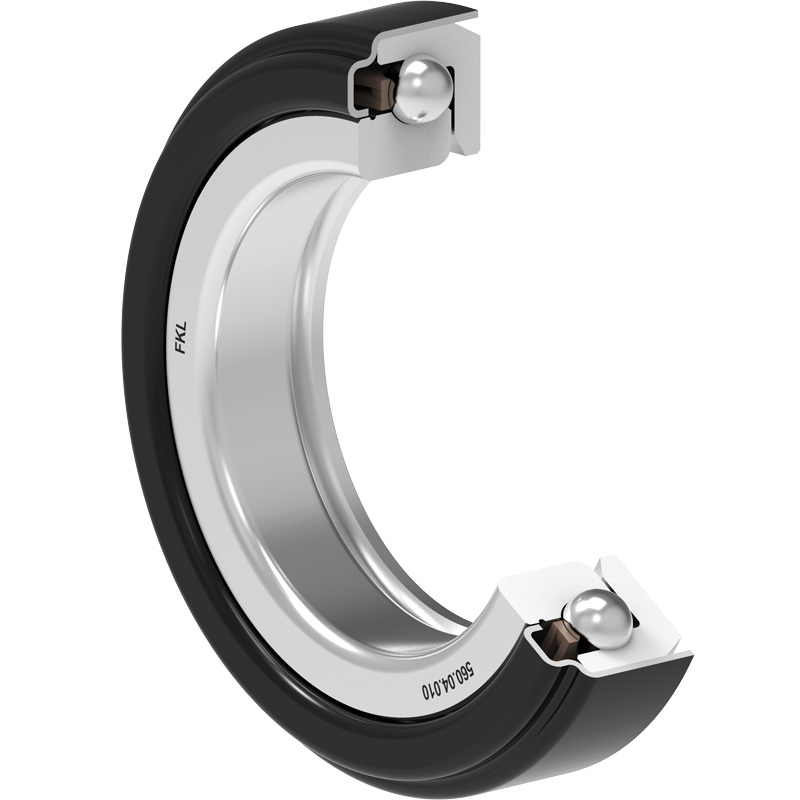

3D view
| d | Bore diameter | 68 | mm |
| D | Outside diameter | 103.4 | mm |
| B | Total width | 22.1 | mm |
| kg | Mass | 0.57 | kg |
| Cdyn | Dynamic load rating | 26.9 | kN |
| Co | Static load rating | 17.7 | kN |
| Pu | Fatigue load limit | 0.743 | kN |

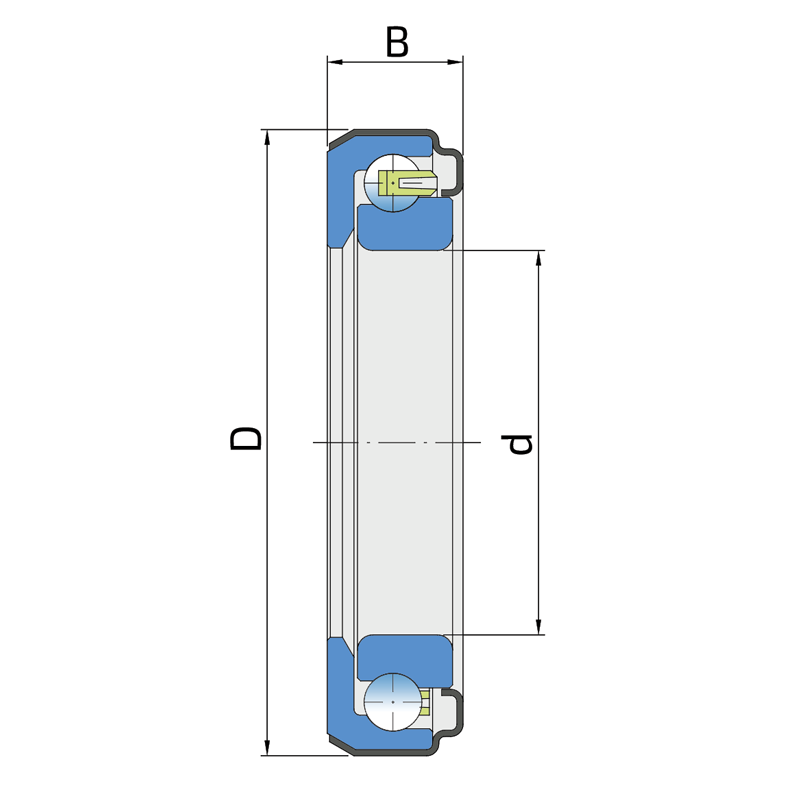

Tehnical Drawing
Sealing
Sealing Drawing
