HARVESTER
LR 35/72/17/25-2T
Ball Bearing
Application: Harvester
3D view
| D | Outside diameter | 72 | mm |
| d | Bore diameter | 35 | mm |
| B | Width inner ring | 25 | mm |
| C | Width outer ring | 17 | mm |
| d1 | Inner ring outside diameter | 41.4 | mm |
| s | Distance from inner ring side face to raceway centre | 11.6 | mm |
| kg | Mass | 0.36 | kg |
| Cdyn | Dynamic load rating | 16 | kN |
| Co | Static load rating | 10.2 | kN |
| Pu | Fatigue load limit | 0.428 | kN |

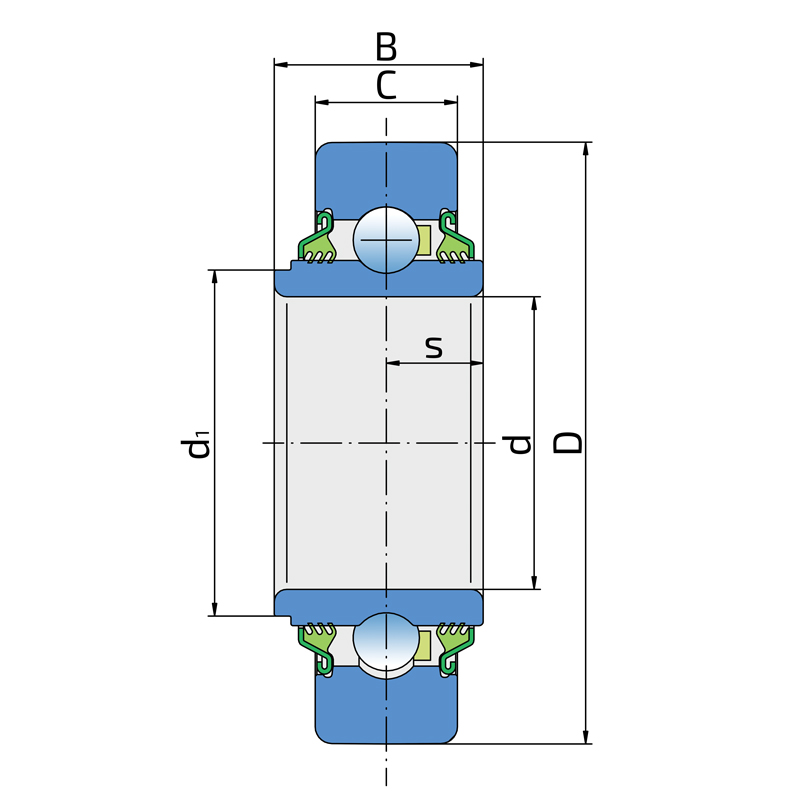

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

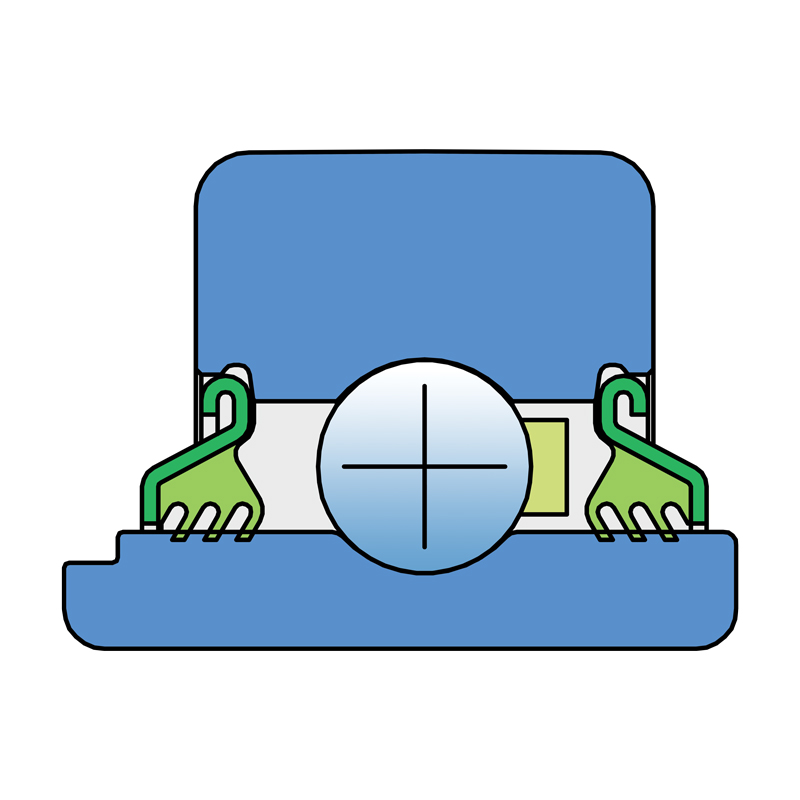

Sealing Drawing
