HARVESTER
309726
Double Row Angular Contact Ball Bearing
Application: Harvester

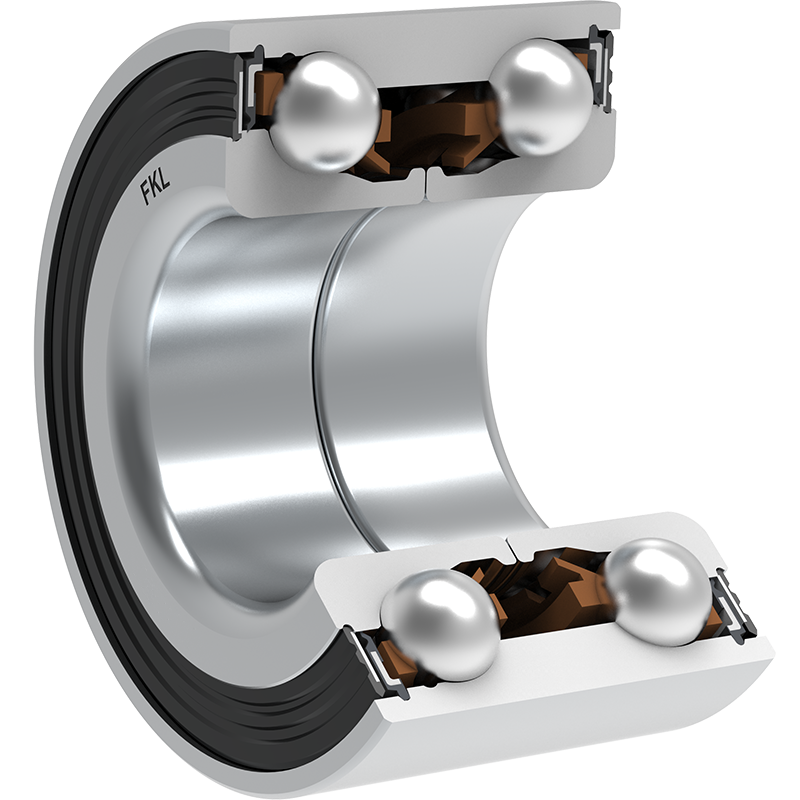

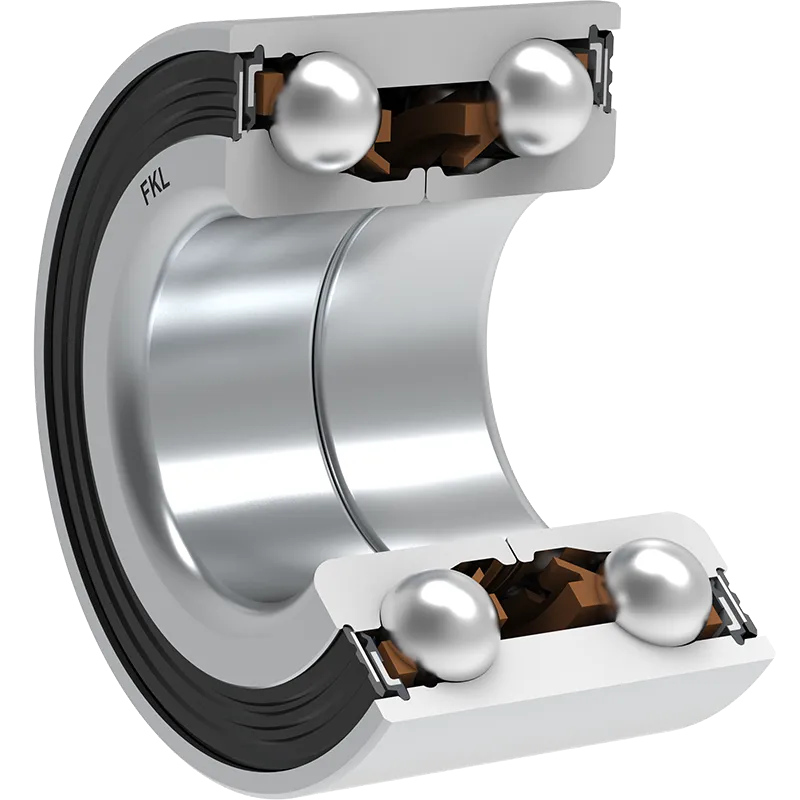

3D view
| d | Bore diameter | 34 | mm |
| D | Outside diameter | 64 | mm |
| B | Width inner ring | 37 | mm |
| C | Width outer ring | 37 | mm |
| α | Contact angle | 34 | ° |
| r1,2 | Inner ring Chamfer dimension | 2.5 | mm |
| r3,4 | Outside ring Chamfer dimension | 0.5 | mm |
| kg | Mass | 0.432 | kg |
| Cdyn | Dynamic load rating | 38.4 | kN |
| Co | Static load rating | 34.4 | kN |
| Pu | Fatigue load limit | 1.445 | kN |

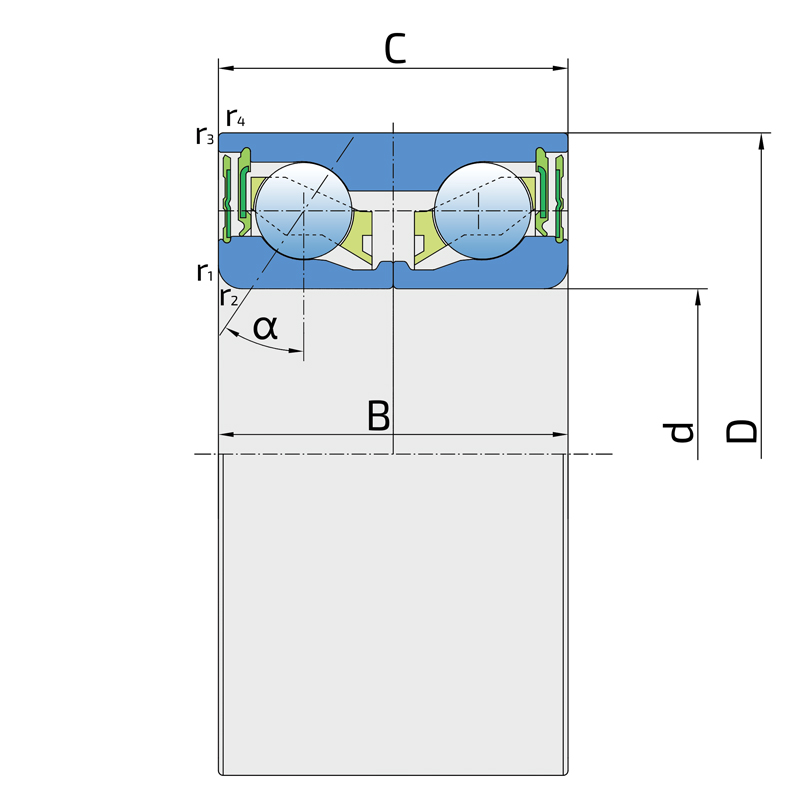

Tehnical Drawing
Sealing
DOUBLE RS SEAL / DOUBLE RS SEAL (4RS)
The 4RS sealing on bearing refers to a sealing system that includes four rubber seals (RS) - two on each side of the bearing.
2RS seal on each side ensure good shielding from dirt, dust, and moisture; reduces grease leakage, extending bearing lifetime; reduces the need for frequent re-lubrication.

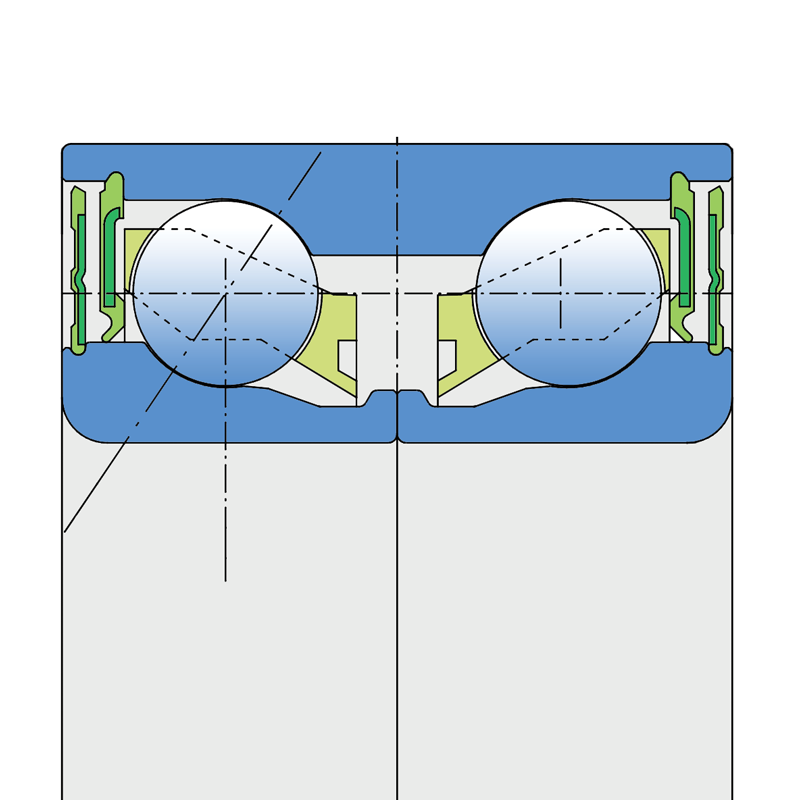

Sealing Drawing
