PACKER BALER
CBK 320
Cylindrical Roller Bearing
Application: Packer Baler

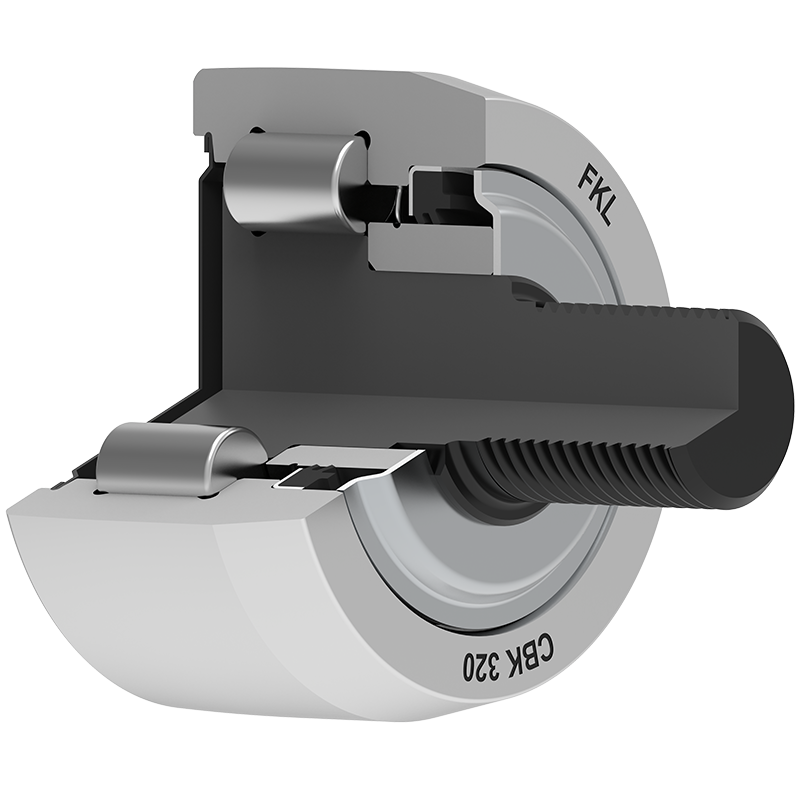

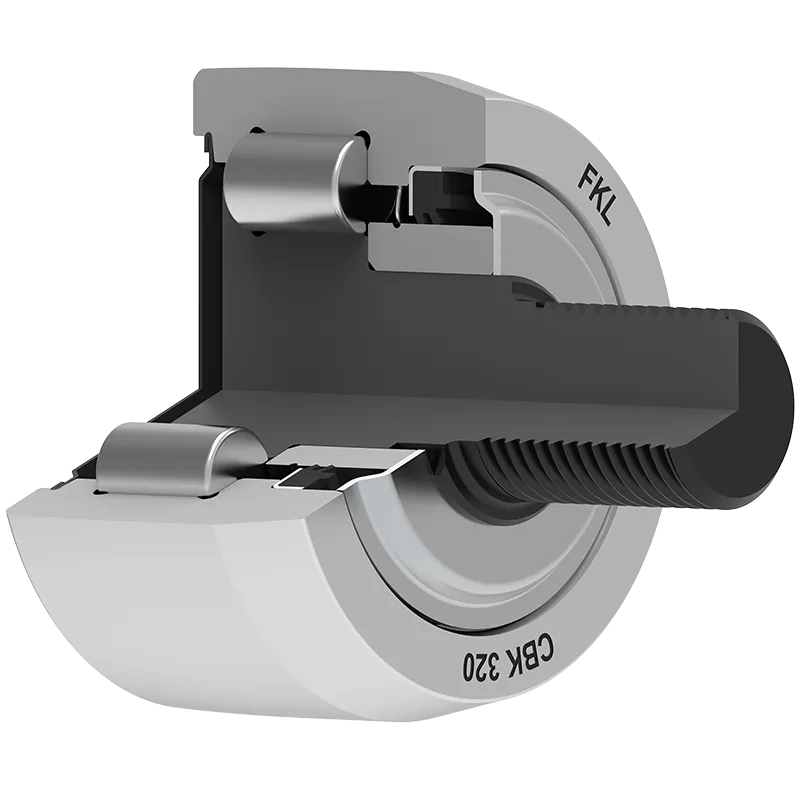

3D view
| d | Bore diameter | 20 | mm |
| D | Outside diameter | 52 | mm |
| L | Total length | 59 | mm |
| L1 | Width outer ring | 30.6 | mm |
| C | D-shape hole cut out dimension | 16.5 | mm |
| E | Length of D shape | 7 | mm |
| M | Outher Thread | M16x1.5 | mm |
| kg | Mass | 0.512 | kg |
| Cdyn | Dynamic load rating | 37.8 | kN |
| Co | Static load rating | 36 | kN |
| Pu | Fatigue load limit | 1.512 | kN |

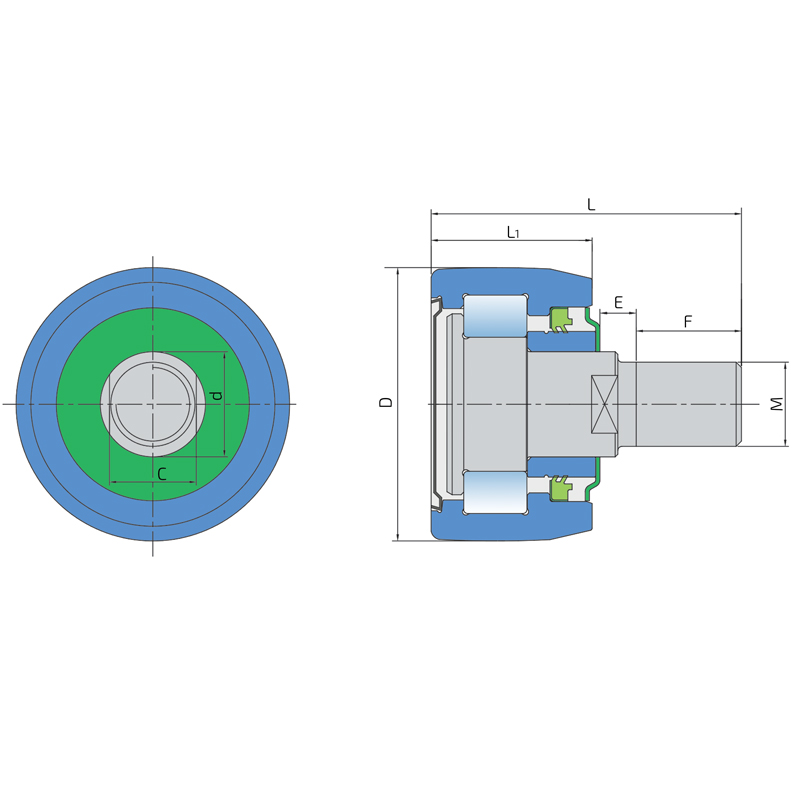

Tehnical Drawing
Sealing
SHEET METAL SHIELD / D SEAL+METAL FLINGER RING
Front side is totally sealed with a Sheet metal shield which prevents all kind of contaminations.
The base side is protected with 2-lip seal and the Metal flinger ring to protect the 2-lip seal from mechanical damages.
Sealing Drawing
