PACKER BALER
LSFPN 210 TDT.C38.C3
Bearing Unit
Application: Packer Roller

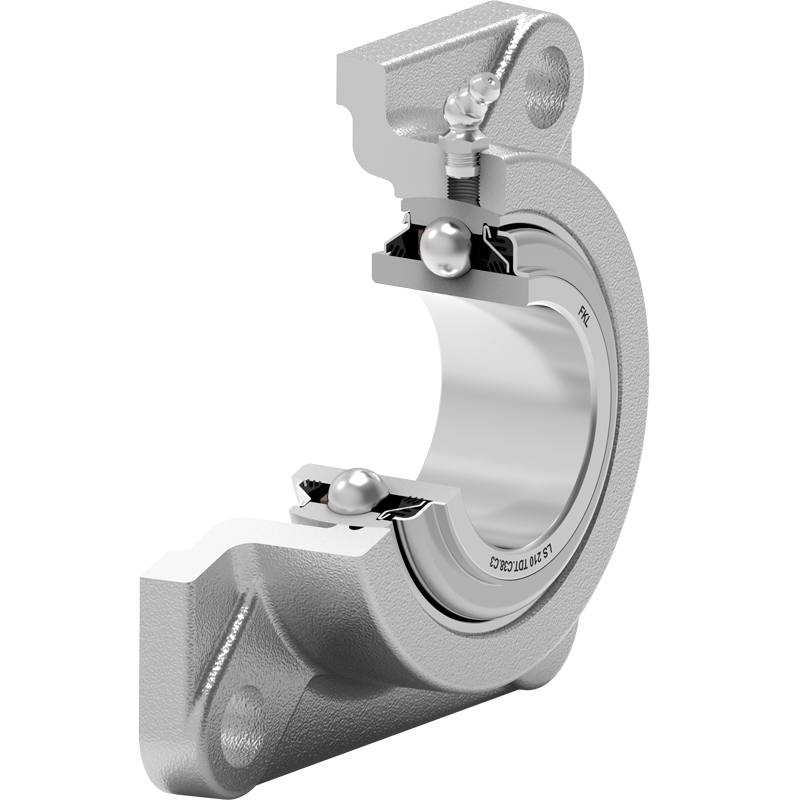

3D view
| d | Bore diameter | 50 | mm |
| B | Width inner ring | 38 | mm |
| A | Overall width | 46.75 | mm |
| A1 | Total housing width | 41.2 | mm |
| A2 | Housing flange thickness | 15 | mm |
| J | Distance between the holes | 111 | mm |
| L | Total length | 142.9 | mm |
| N | Hole diameter | 4x17 | mm |
| kg | Mass | 2.35 | kg |
| Cdyn | Dynamic load rating | 35.1 | kN |
| Co | Static load rating | 23.2 | kN |
| Pu | Fatigue load limit | 0.974 | kN |

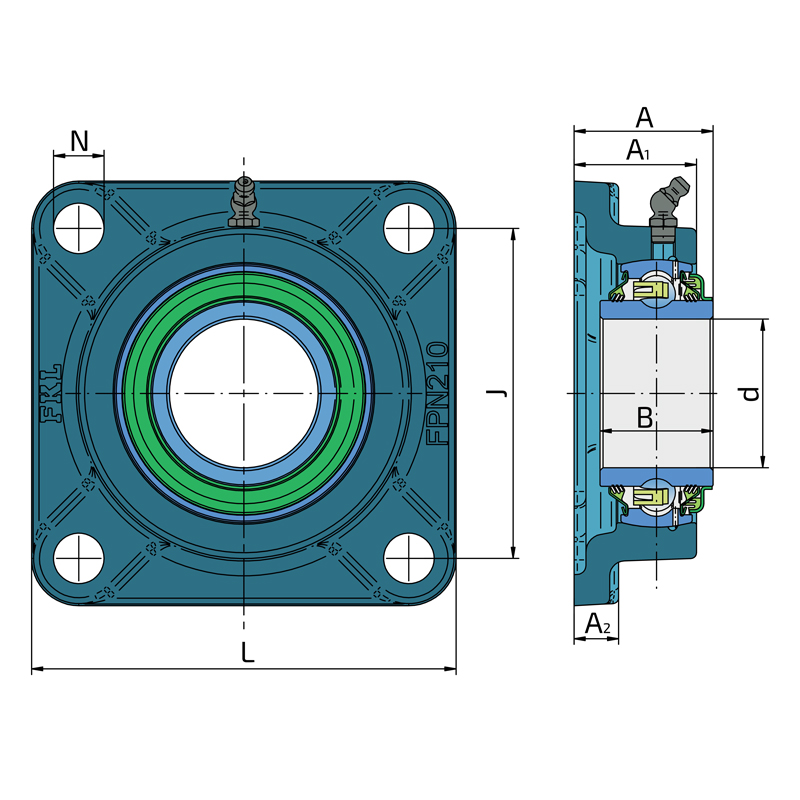

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
