Products
PACKER BALER
207KPPB31.C25
Hexagonal Bore Series With Spherical Outer Ring
Application: Packer Baler

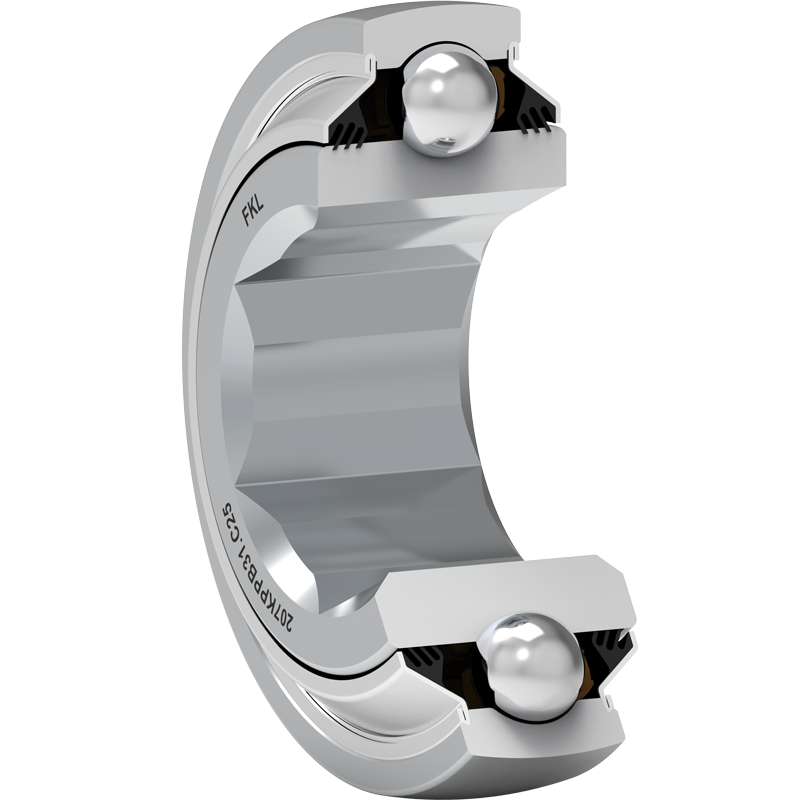

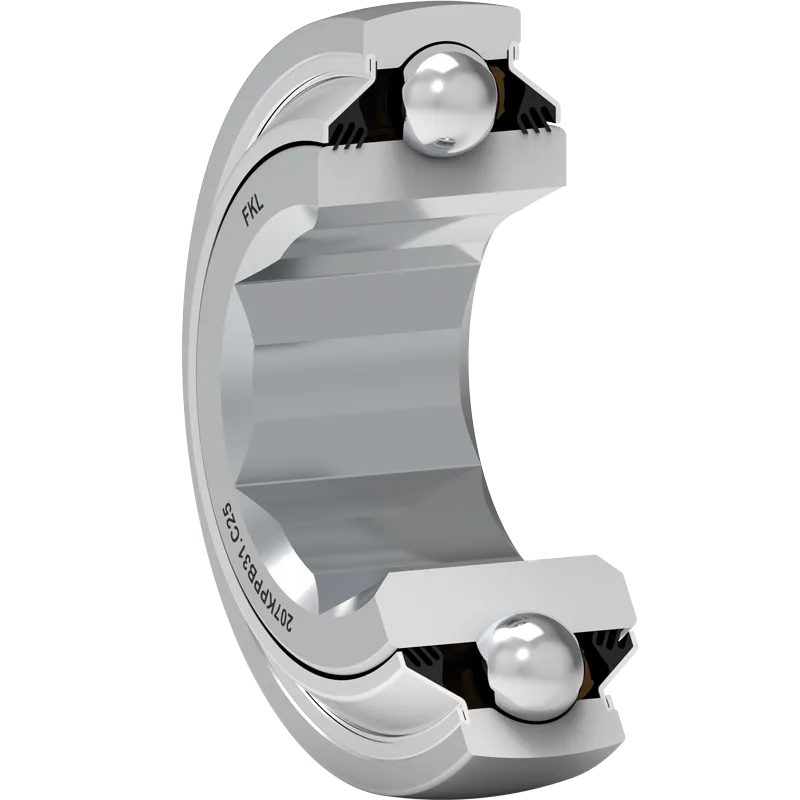

3D view
| D | Outside diameter | 72 | mm |
| B | Width inner ring | 25 | mm |
| C | Width outer ring | 19 | mm |
| d1 | Outer diameter inner ring | 46.1 | mm |
| a | Shaft size | 31.78 | mm |
| Cdyn | Dynamic load rating | 25.7 | kN |
| Co | Static load rating | 15.3 | kN |
| Pu | Fatigue load limit | 0.643 | kN |

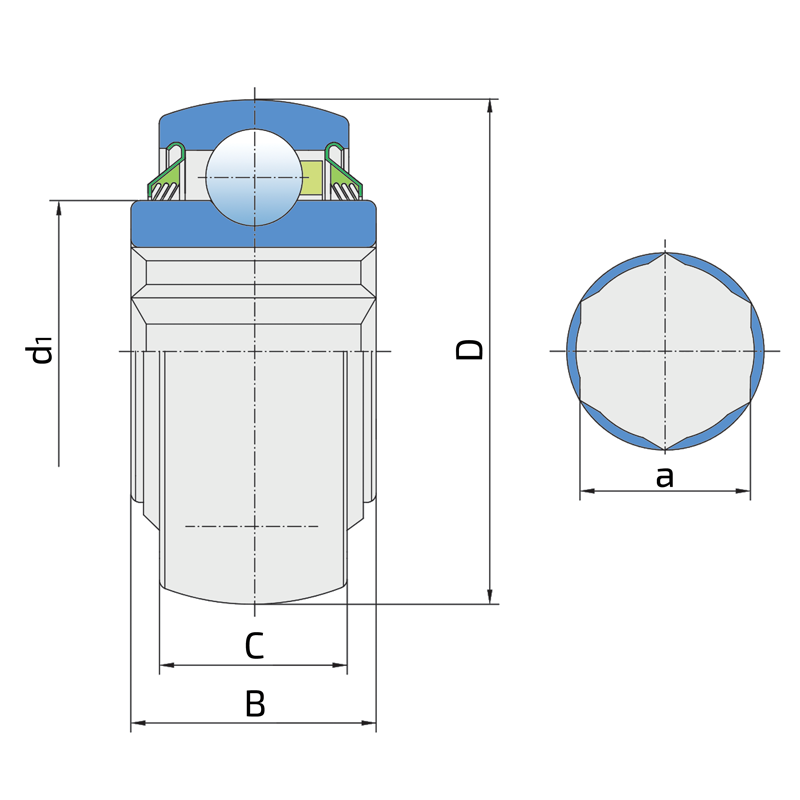

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
