PACKER ROLLER
LSQFR 308-13.5 TDT.H.T
Bearing Unit
Application: Packer Roller

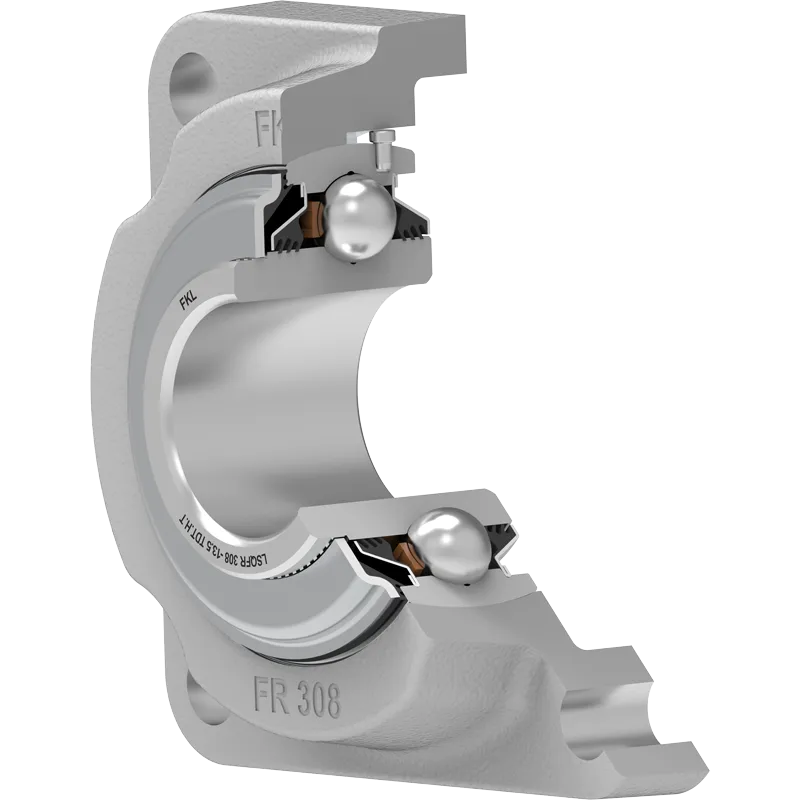

3D view
| d | Bore diameter | 40 | mm |
| L | Total length | 130 | mm |
| J | Distance between the holes | 101.5 | mm |
| H/T | Hole/Thread | 13.5 | mm |
| A | Overall width | 51.4 | mm |
| A1 | Total housing width | 40.6 | mm |
| A2 | Housing flange thickness | 19 | mm |
| B | Width inner ring | 42.9 | mm |
| kg | Mass | 2.5 | kg |
| Cdyn | Dynamic load rating | 62.3 | kN |
| Co | Static load rating | 45.2 | kN |
| Pu | Fatigue load limit | 1.898 | kN |
Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
