SEEDING MACHINE
PL-7520
Bearing Unit (Double row angular contact ball bearing in pressed steel housing)
Application: Seeding Machine

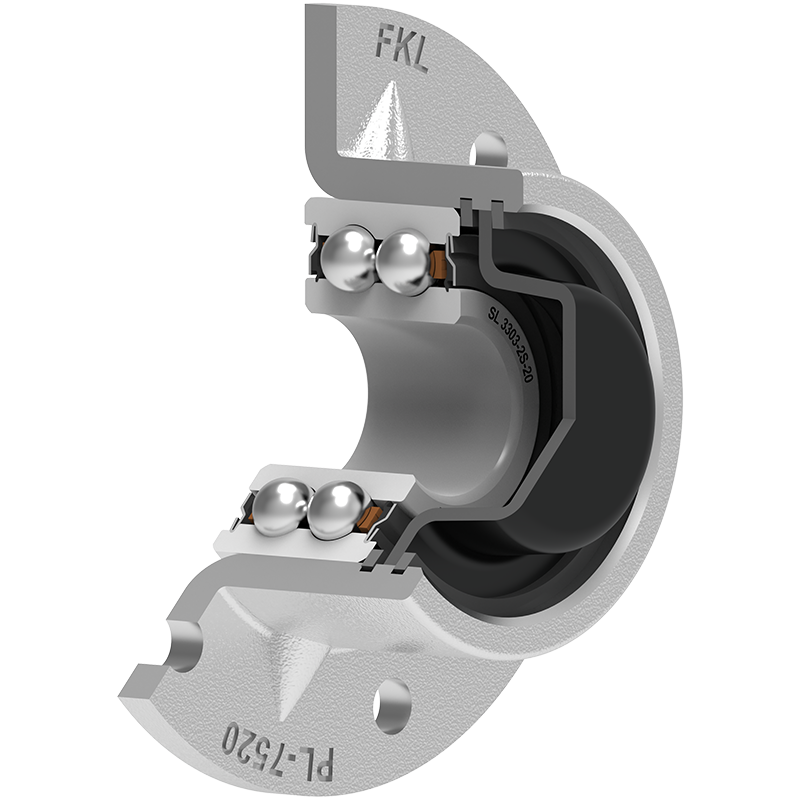

3D view
| d | Bore diameter | 20 | mm |
| D | Outside diameter | 92 | mm |
| J | Pitch circle diameter | 75 | mm |
| L1 | Total flange length | 34 | mm |
| N | Hole diameter | 6.7H12 | mm |
| kg | Mass | 0.56 | kg |
| Cdyn | Dynamic load rating | 19.5 | kN |
| Co | Static load rating | 12.6 | kN |
| Pu | Fatigue load limit | 0.529 | kN |
Tehnical Drawing
Sealing
S SEAL / S SEAL+PLASTIC CAP
S seal on the base side and S seal with Plastic cap on the front side which is exposed to the environment.
Plastic cap protects the nut and reduces the penetration of contaminants.
Sealing Drawing
