SEEDING MACHINE
SL 5204 TS
Ball bearing
Application: Seeding Machine

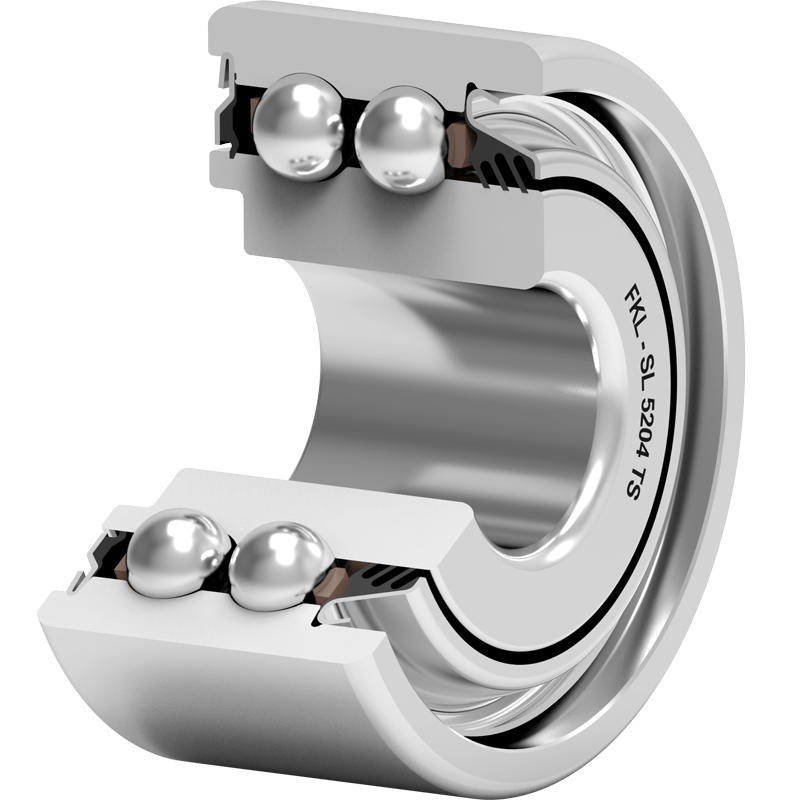

3D view
| d | Bore diameter | 16.1 | mm |
| d1 | Inner ring shoulder diameter | 24 | mm |
| D | Outside diameter | 47 | mm |
| B | Width inner ring | 22.1 | mm |
| C | Width outer ring | 24.6 | mm |
| α | Contact angle | 20 | ° |
| kg | Mass | 0.21 | kg |
| Cdyn | Dynamic load rating | 16.3 | kN |
| Co | Static load rating | 10.9 | kN |
| Pu | Fatigue load limit | 0.458 | kN |

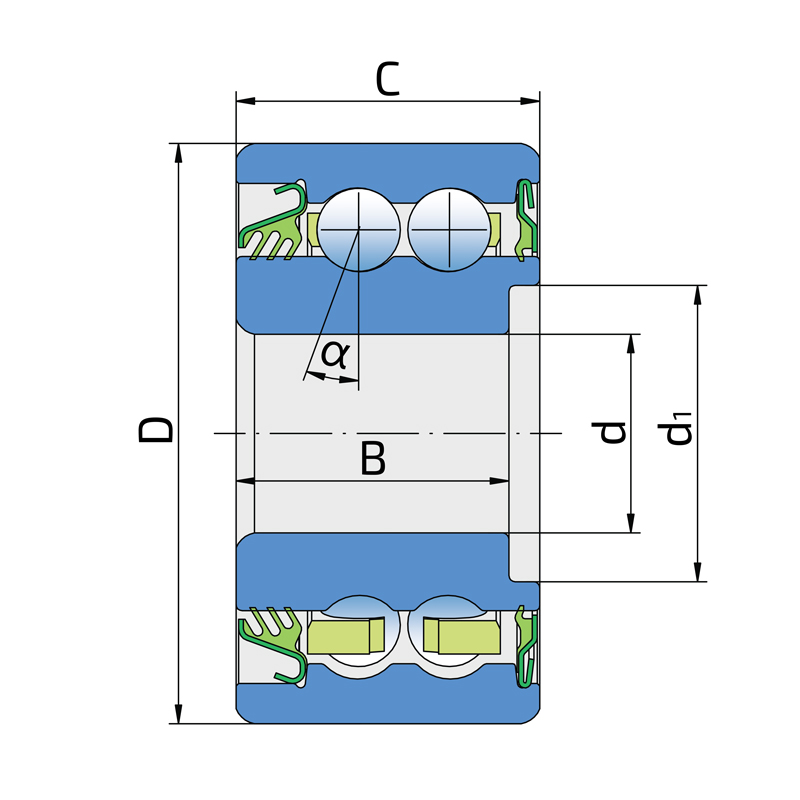

Tehnical Drawing
Sealing
T SEAL / S SEAL
3-lip seal on the base side and the S seal on the front side.
3-lip seal on the base side ensuring effective protection against contamination. S seal on the front side, preventing ingress of contaminants into the bearing.

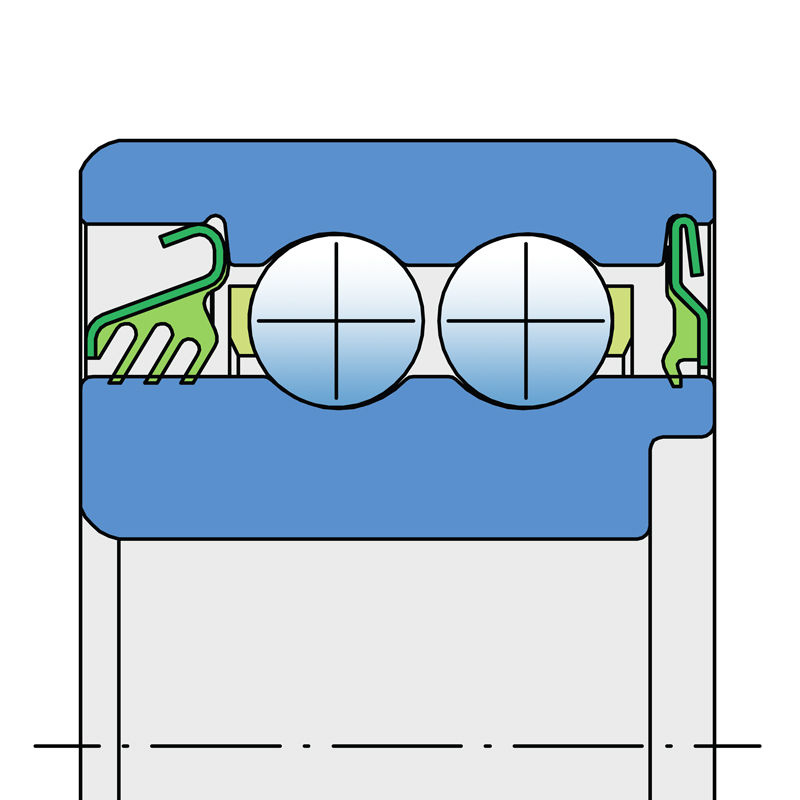

Sealing Drawing
