DISC HARROW
PL-140
Bearing Unit
Application: Disc Harrow

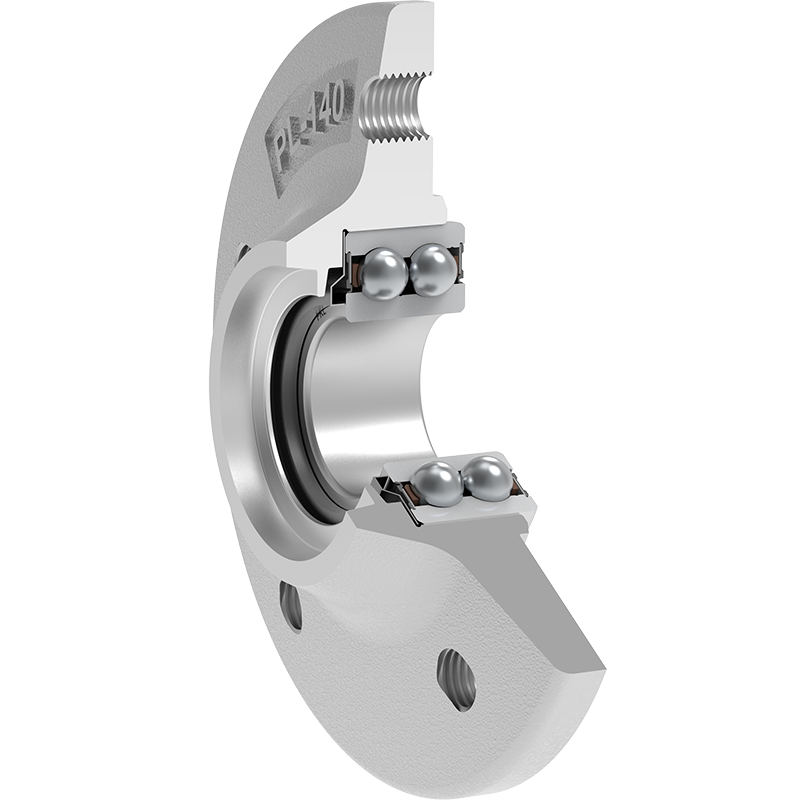

3D view
| J | Pitch circle diameter | 104 | mm |
| D | Outside diameter | 140 | mm |
| D1 | Outside diameter | 62 | mm |
| d | Bore diameter | 30 | mm |
| H/T | Hole/Thread | M12 | mm |
| L | Total length | 35 | mm |
| B | Width inner ring | 23.8 | mm |
| kg | Mass | 1.5 | kg |
| Cdyn | Dynamic load rating | 31 | kN |
| Co | Static load rating | 22.2 | kN |
| Pu | Fatigue load limit | 0.932 | kN |

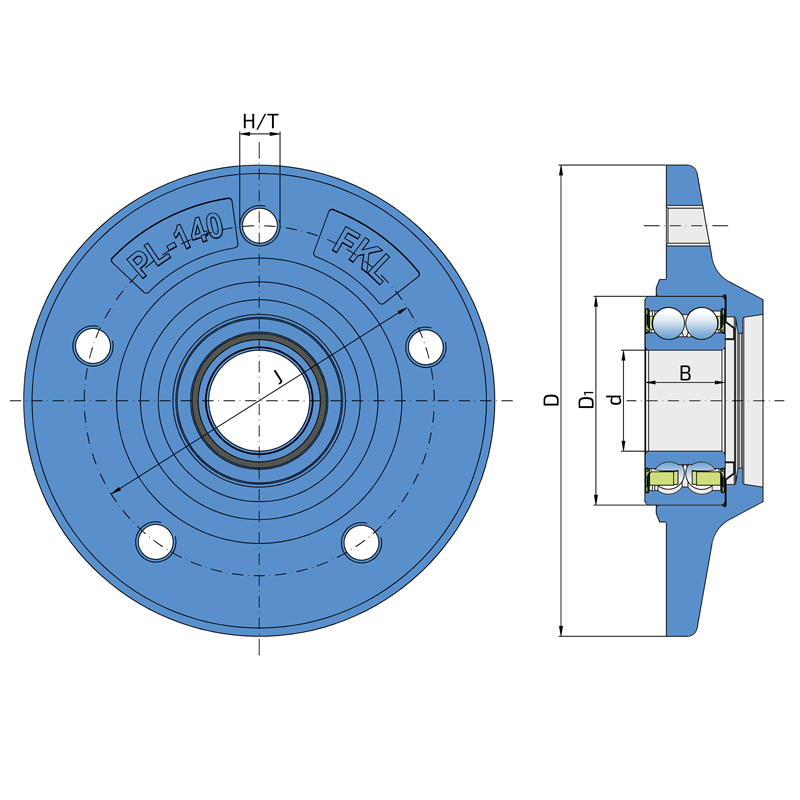

Tehnical Drawing
Sealing
RS SEAL / RS SEAL+METAL SHIELD
RS seal on the base side and RS seal with Metal shield on the front side which is exposed to the environment.
Sealing Drawing
