DISC HARROW
GWHG 211PP25
Trunnion Bearing Units
Application: Disc Harrow

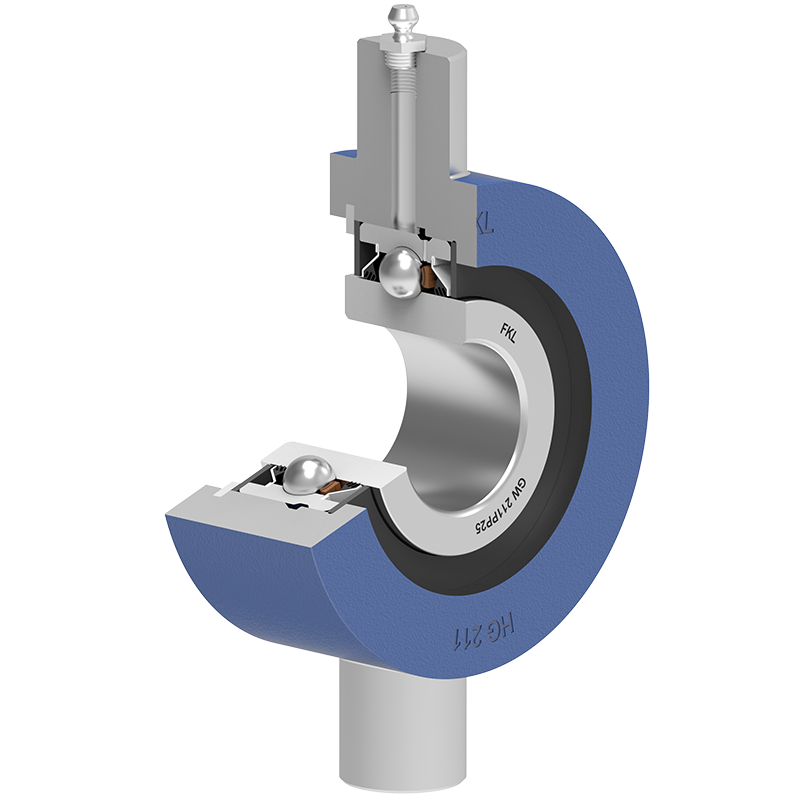

3D view
| d | Bore diameter | 45.212 | mm |
| d1 | Bearing housing sleeve diameter | 34 | mm |
| D | Outside diameter | 134 | mm |
| A | Overall width | 54 | mm |
| B | Width inner ring | 44.5 | mm |
| H | Housing height | 200 | mm |
| kg | Mass | 4.88 | kg |
| Cdyn | Dynamic load rating | 43.5 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.218 | kN |

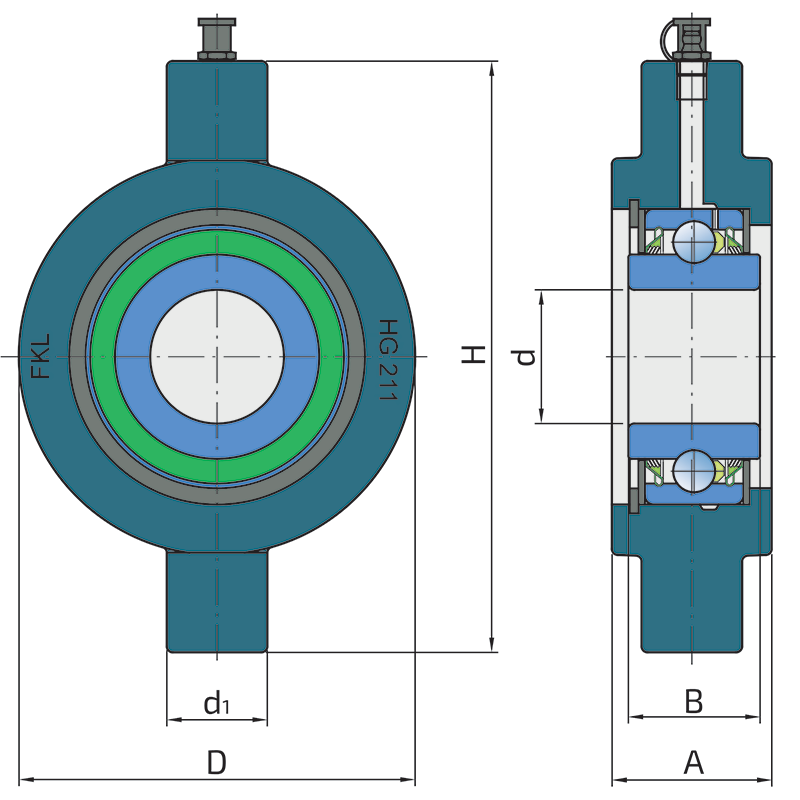

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

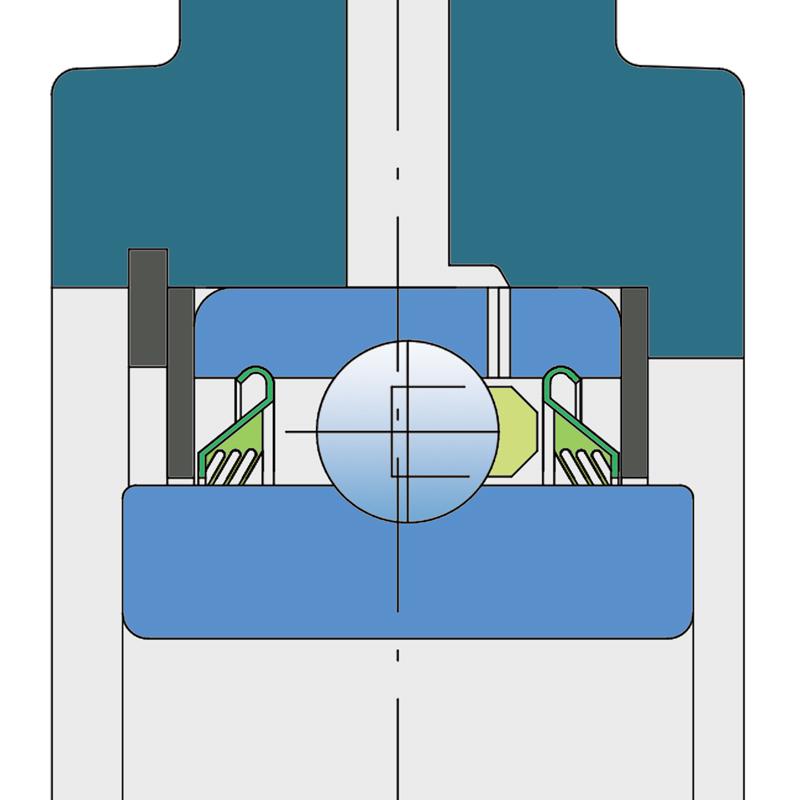

Sealing Drawing
