DISC HARROW
GWST 209PPB28
Square Series
Application: Disc Harrow

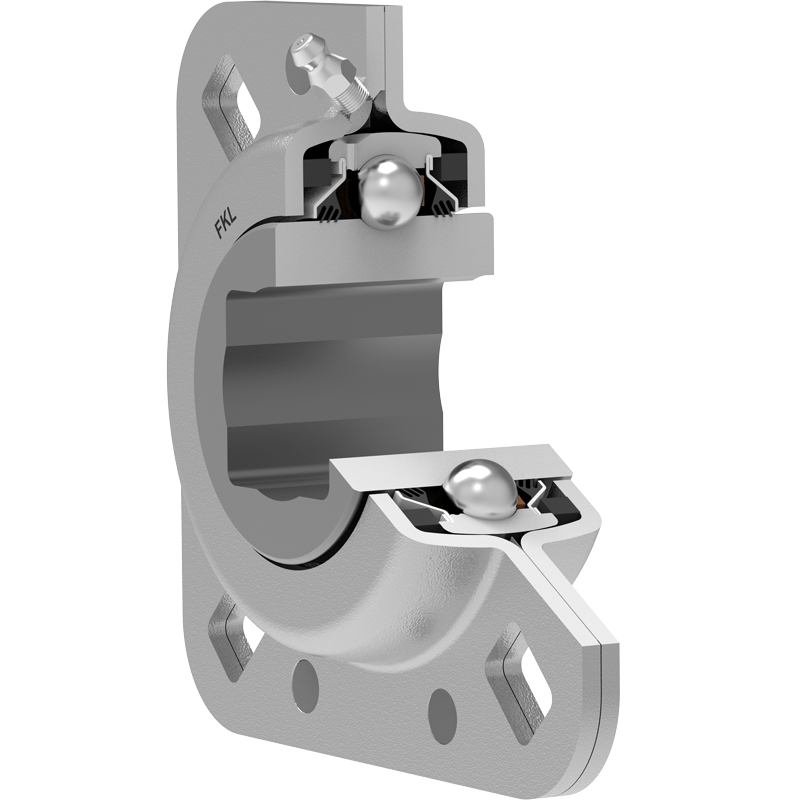

3D view
| a | Hexagonal bore | 30 | mm |
| d | Bore diameter | 1.252 | inch |
| d | Bore diameter | 31.8 | mm |
| B | Width inner ring | 42.85 | mm |
| C | Width outer ring | 22 | mm |
| Da | Centering diameter | 97 | mm |
| L | Overall length | 127 | mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 39 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| J | Pitch circle diameter | 127 | mm |
| N | Diameter of attachment slot | 13.5 | mm |
| Fr | Radial load | 7.7 | kN |
| Fa | Axial load | 3.8 | kN |
| kg | Mass | 1.69 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |
| Pu | Fatigue load limit | 0.857 | kN |

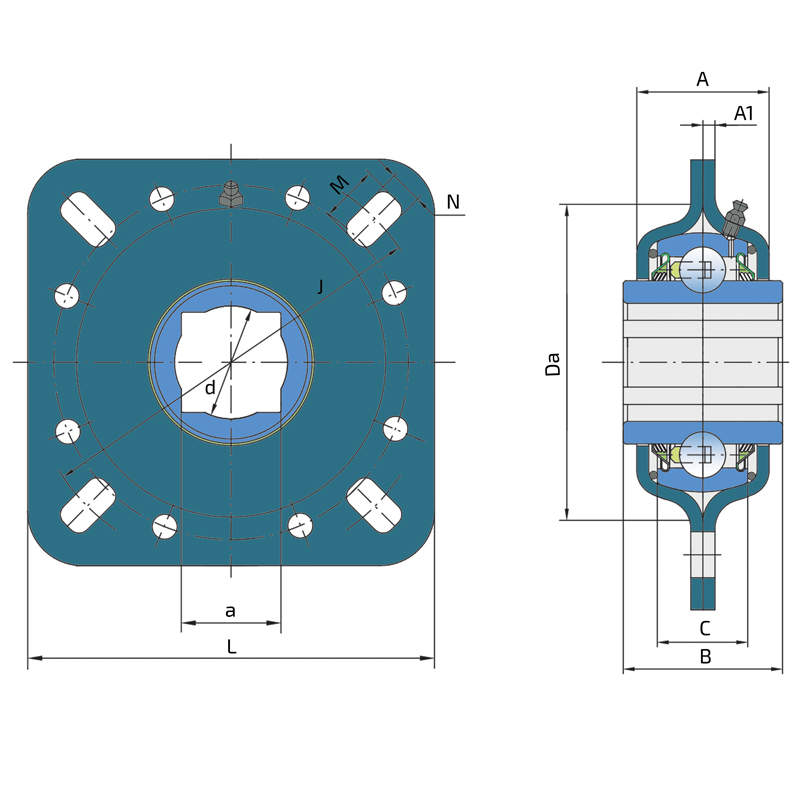

Tehnical Drawing
Sealing
O-RING + T SEAL / T SEAL + O-RING
3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. O-rings are protecting the area between the bearing and sheet metal housing.

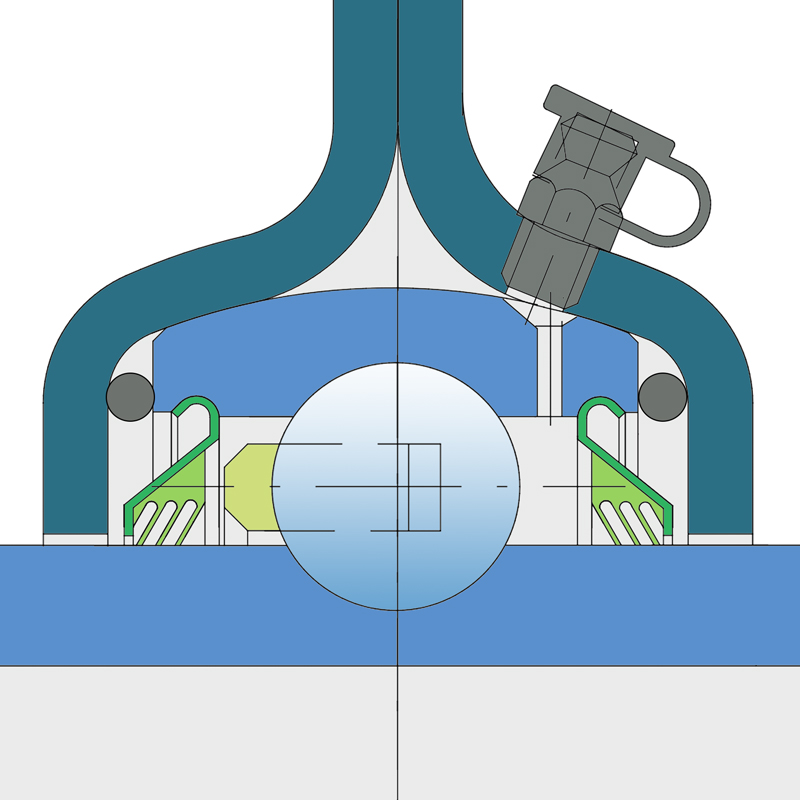

Sealing Drawing
