DISC HARROW

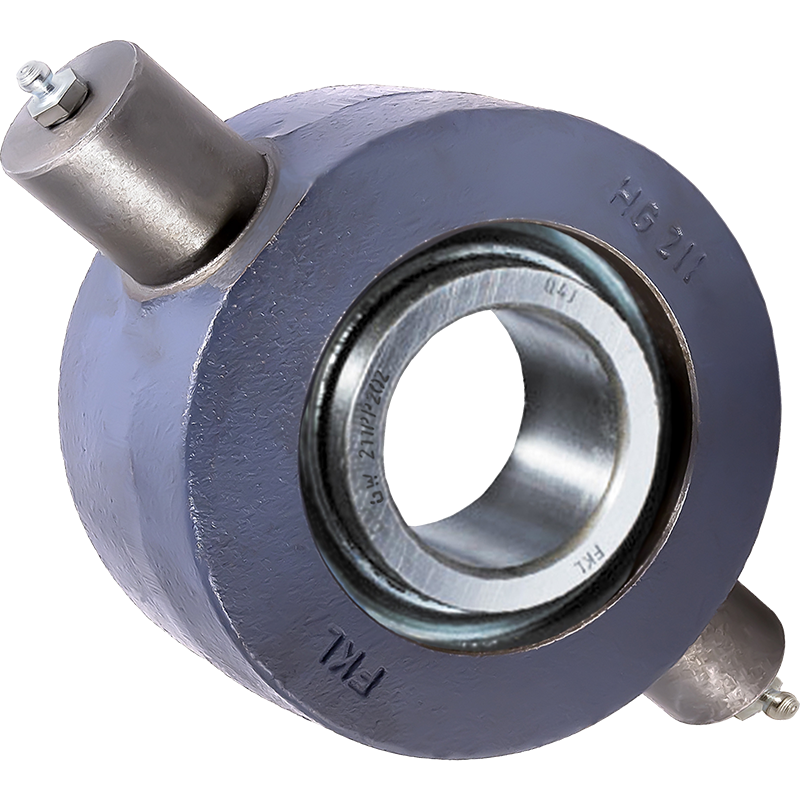

GWHGR 211PP202

Trunnion Bearing Units

Application: Disc Harrow

3D view

Technical Specification
CdynDynamic load rating43,5kN
CoStatic load rating29kN
DOutside diameter 129,5mm
dBore diameter51,308mm
d1Bearing housing sleeve diameter37
kgMass4,8lbs
HHousing height202,5mm
BWidth inner ring 60,3mm
AOverall width57mm

Sealing Type

×
×
