DISC HARROW

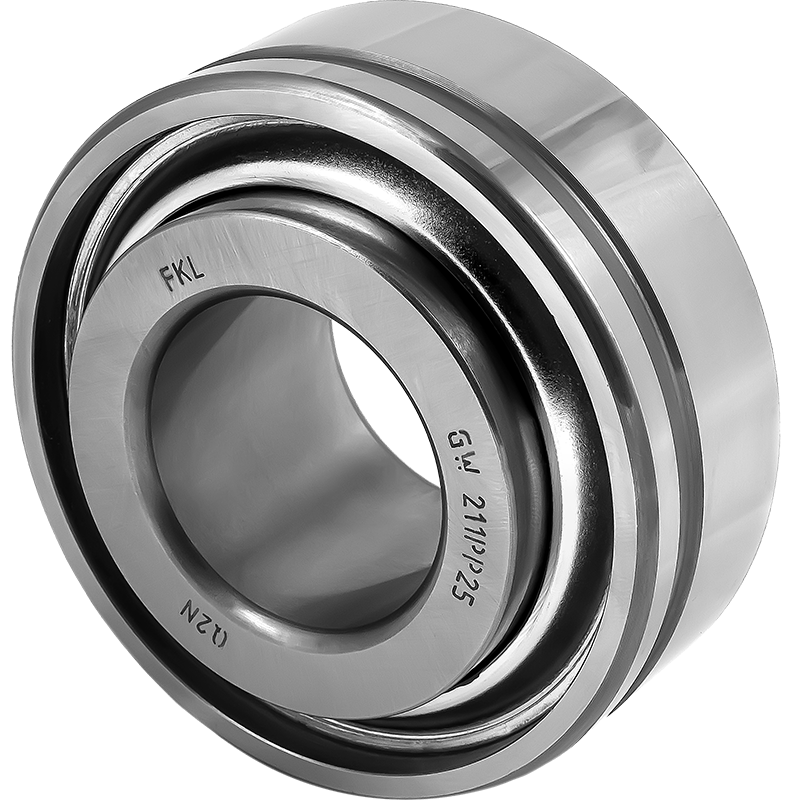

GW 211PP25

Round Bore Series With Cylindrical Outer Ring – Relubricable Type

Application: Disc Harrow

3D view

Technical Specification
CdynDynamic load rating43,5kN
CoStatic load rating29kN
DOutside diameter 100mm
dBore diameter45,212mm
CD-shape hole cut out dimension33,34mm
kgMass1,11lbs
BWidth inner ring 44,5mm

Sealing Type

×
×
